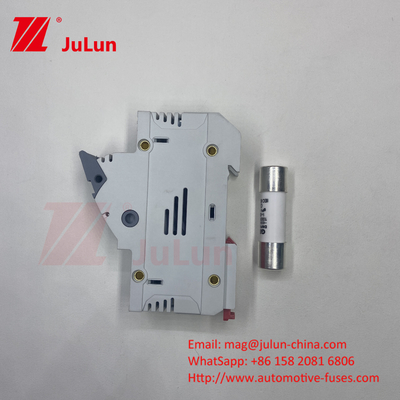

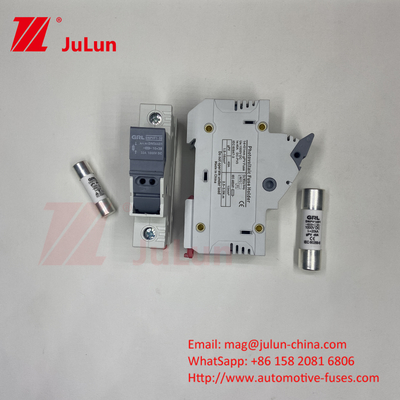

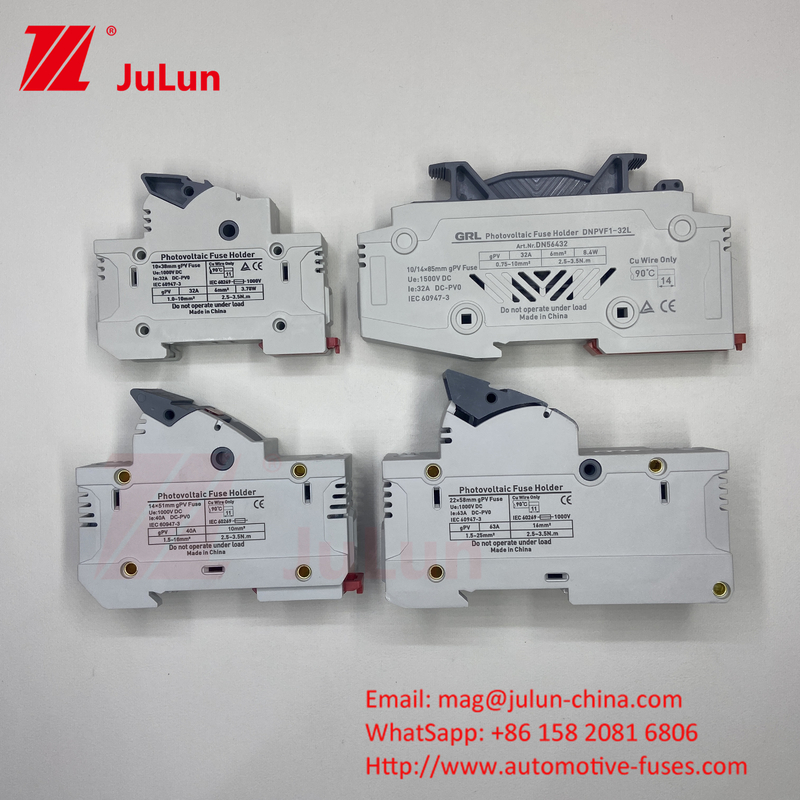

SeanRo Solar PV Din Rail Fuse Holder For Fuse Link 10*38mm 1000V 15amp Dc Fuse 25A
Product Details:
| Place of Origin: | China |
| Brand Name: | SINOPV RLPV JULUN GRT |
| Certification: | IEC 60269 |
| Model Number: | 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 22*58mm 10*85mm 14*65mm 32A 40A 63A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 2~5USD |
| Packaging Details: | carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Installation Mode: | Din Guide Fuse Holder | Fuse Size: | 10x38mm,14x51mm,14x65mm, 22*58mm 10x85mm |
|---|---|---|---|
| Fuse Element Material: | Silver/Copper/silica/ | Product Name: | Solar PV Fuse Holder With Fuse |
| Fuse Shepe: | Cylindrical Fuse | Rated Voltage: | 1000VDC 1500VDC 500VDC |
| Be Suitable For: | Photovoltaic Bus Box, Photovoltaic Module Protection | Fuse Body Material: | Ceramic |
| Highlight: | 1000V Solar PV Fuse,10*38mm Solar PV Fuse,15amp Solar PV Fuse |
||
Product Description
Product Description:
The Solar PV Fuse is designed to provide reliable overcurrent protection for solar photovoltaic systems. It is a DIN rail solar fuse holder that is TUV CE certified, ensuring that it meets the highest safety and performance standards. The fuse is rated for 1000VDC and has a current rating of 32A, making it suitable for a wide range of photovoltaic applications.
The 10*38mm gPV 1000VDC 32A FUSE is a popular choice for solar PV installations, thanks to its compact size and high performance. It is designed to withstand the high currents and voltages typically found in solar photovoltaic systems, providing reliable protection for the system and its components.
The Solar PV Fuse is easy to install and maintain, making it an ideal choice for solar PV installers and system integrators. It is compatible with a wide range of photovoltaic equipment and can be used in both residential and commercial installations.
In summary, the Solar PV Fuse is a reliable and efficient overcurrent protection solution for solar photovoltaic systems. With its high breaking capacity, compact size, and TUV CE certification, it is an excellent choice for DIN rail solar fuse holder applications. Whether you are installing a small residential solar system or a large commercial installation, the Solar PV Fuse is an essential component for ensuring the safety and reliability of your system.
Features:
- Product Name: Solar PV Fuse Holder With Fuse
- Use for: Solar Photovoltaic Inverter
- Weight: 20g, 30g, 40g, 50g, 80g
- Breaking capacity: 30kA
- Rated Voltage: 1000VDC, 1500VDC, 500VDC
- Features: High voltage solar fuse, TUV CE certified, 10*38mm gPV 1000VDC 32A FUSE
Technical Parameters:
| Technical Parameters | Specifications |
|---|---|
| Fuse Element Material | Silver/Copper/Silica |
| Rated Voltage | 500VDC / 1000VDC / 1500VDC |
| Be suitable for | Photovoltaic Bus Box, Photovoltaic Module Protection |
| Product Name | Solar PV Fuse Holder With Fuse |
| Installation mode | Din Guide Fuse Holder |
| Breaking capacity | 30kA |
| Fuse Body Material | Ceramic |
| Working Temperature | -50~105°C |
| Rated Current | 10A / 12A / 15A / 16A / 20A / 25A / 30A / 32A / 40A / 50A / 63A |
| Weight | 20g / 30g / 40g / 50g / 80g |
Applications:
Designed to withstand a working temperature range of -50~105°C, this high voltage solar fuse is perfect for various applications. The cylindrical fuse shape and ceramic fuse body material ensures durability and safety.
Whether it’s for commercial or residential use, the Solar PV Fuse Holder with Fuse is an ideal solution for protecting your solar panels and systems. It is TUV CE certified and can handle up to 1000VDC and 15A of electricity.
With its lightweight design, weighing only 20g, 30g, 40g, 50g, or 80g depending on the model, this product is easy to install and maintain.
Use the Solar PV Fuse Holder with Fuse for various occasions and scenarios such as solar power systems, solar street lights, solar water pumps, solar panels, and more.
Customization:
Brand Name: SINOPV RLPV JULUN GRT
Model Number: 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC 10*38mm 14*51mm 22*58mm 10*85mm 14*65mm 32A 40A 63A
Place of Origin: China
Fuse Size: 10x38mm, 14x51mm, 14x65mm, 22*58mm, 10x85mm
Standard: IEC60269.6, IEC60947-3
Rated Current: 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 63A
Installation mode: Din Guide Fuse Holder
Rated Voltage: 1000VDC, 1500VDC, 500VDC
Keywords: Ceramic photovoltaic fuse 10*85 1500DC, Solar panel thermal fuse, 10*38mm gPV 1000VDC 32A FUSE
Support and Services:
The Solar PV Fuse product technical support and services include:
- Expert consultation on product selection and application
- Product installation and commissioning support
- Product testing and troubleshooting assistance
- Warranty and repair services
- Product training and education
Packing and Shipping:
Product Packaging:
- Quantity: 1 Solar PV Fuse
- Packaging material: Cardboard box
- Box dimensions: 6 inches x 4 inches x 2 inches
- Weight: 0.5 lbs
Shipping:
- Shipping method: Standard ground shipping
- Shipping carrier: UPS
- Delivery time: 3-5 business days
- Shipping cost: $5
FAQ:
Q: What is the brand name of this Solar PV fuse?
A: The brand name of this Solar PV fuse is SINOPV RLPV JULUN GRT.
Q: What are the available model numbers of this Solar PV fuse?
A: The available model numbers of this Solar PV fuse are 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10*38mm, 14*51mm, 22*58mm, 10*85mm, 14*65mm, 32A, 40A, and 63A.
Q: Where is this Solar PV fuse manufactured?
A: This Solar PV fuse is manufactured in China.
Q: What is the voltage rating of this Solar PV fuse?
A: The voltage rating of this Solar PV fuse is 500VDC, 1000VDC, and 1500VDC.
Q: What are the dimensions of this Solar PV fuse?
A: The dimensions of this Solar PV fuse are 10*38mm, 14*51mm, 22*58mm, 10*85mm, and 14*65mm.
