Fractant Seat 1500VDC 32A Photovoltaic Fuse Holder 14X51 TSA1451-B Series UL
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | TSA1451-B Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 1500VDC | Rated Current: | 32A |
|---|---|---|---|
| Shell Material: | PBT (E202 G30) | Tolerance Temperature: | -40 ℃ ~ 120 ℃ |
| Flame Retardant Grade: | UL94-V0 | Container Guide Specifications: | Th35-7.5 |
| Wiring Screw Torque: | 2.5N.M ~ 3n.m | Conduct Cross -sectional Area: | 2.5 ～ 16mm2 (14 ～ 6AWG) |
| Highlight: | 1500VDC Photovoltaic Fuse Holder,32A Photovoltaic Fuse Holder,UL PV Fuse Holder |
||
Product Description
Fractant Seat 1500VDC 32A 14X51 TSA1451-B Series Base For Photovoltaic Fuse Base UL
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation

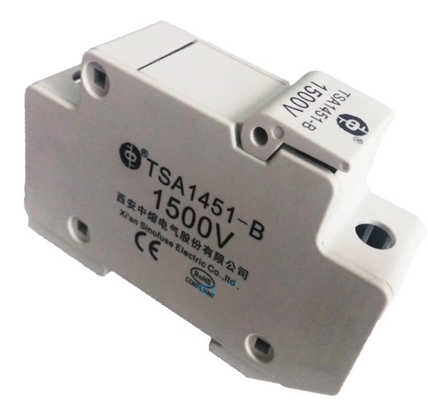

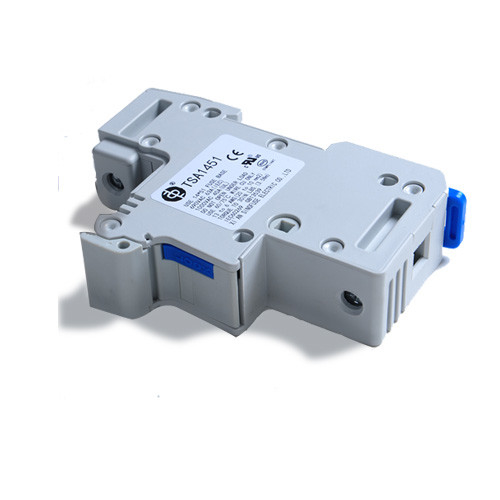

TSA1451-B series base
● Rated voltage: 1500VDC
● Rated current: 32A
● Shell material: PBT (E202 G30)
● Tolerance temperature: -40 ℃ ~ 120 ℃
● Flame retardant grade: UL94-V0
● In line with UL4248-19, IEC60269
● Container guide specifications: Th35-7.5
● Through UL and CE certification, in line with ROHS
● Wiring screw torque: 2.5N.M ~ 3n.m
● Conduct cross -sectional area: 2.5 ～ 16mm2 (14 ～ 6AWG)
TSA1451-B is a card-installed base designed based on the RS308-PV (14ⅹ51) series. It is used with TH35-7.5 installation rails.
It has the characteristics of small volume, high strength, high flame retardant and other characteristics. It can be used to protect and isolate photovoltaic battery components or arrays, protection and isolation
Xueneng (animal) battery configures the corresponding connection axis according to the actual needs.
