Solar Photovoltaic Inverter PV Fuse With Ceramic Body DIN Mount Dc Fuse 250a 10x85 1500Vdc PV Fuse Holder 15

Product Description:

The Solar PV Fuse is designed for installation in a DIN guide fuse holder, which makes it easy to integrate into your solar panel system. It is made from high-quality materials, including silver, copper, and silica, which ensures that it can withstand the harsh conditions that are often associated with marine solar installations.

The Solar PV Fuse is rated for use at up to 1000VDC and 15A, which makes it suitable for high voltage solar installations. It is a cylindrical fuse, which means that it has a compact design that can be easily integrated into your solar panel system.

Overall, the Solar PV Fuse is an essential component for any solar panel installation. It provides reliable protection against overcurrent and short-circuit conditions, and its high-quality materials ensure that it can withstand the harsh conditions that are often associated with marine solar installations. If you need a high-quality and reliable fuse for your solar panel system, the Solar PV Fuse is an excellent choice.



Features:

• Product Name: Solar PV Fuse
• Rated Current:
  • 10A
  • 12A
  • 15A
  • 16A
  • 20A
  • 25A
  • 30A
  • 32A
  • 40A
  • 50A
  • 63A
• Rated Voltage:
  • 1000VDC
  • 1500VDC
  • 500VDC
• Fuse Body Material: Ceramic
• Use for: Solar Photovoltaic Inverter
• Weight:
  • 20g
  • 30g
  • 40g
  • 50g
  • 80g

Product Description: 10*38mm gPV 1000VDC 32A FUSE, High voltage solar fuse, TUV CE



Technical Parameters:

Product Name	Solar PV Fuse Holder With Fuse
Fuse Body Material	Ceramic
Fuse Shepe	Cylindrical Fuse
Fuse Element Material	Silver/Copper/silica/
Installation Mode	DIN rail solar fuse holder
Breaking Capacity	30kA
Working Temperature	-50~105°C
Use For	Solar Photovoltaic Inverter
Standart	IEC60269.6 IEC60947-3
Weight	20g 30g 40g 50g 80g
Certification	TUV CE



Applications:

The Solar PV Fuses come in various models, including 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10x38mm, 14x51mm, 22x58mm, 10x85mm, 14x65mm, 32A, 40A, and 63A. These fuses are made in China and are designed to withstand harsh environmental conditions.

The Solar PV Fuses are suitable for a wide range of application occasions and scenarios. For instance, they are ideal for use in marine solar systems, where they help to protect the systems from overcurrent and short circuits that may arise due to harsh marine conditions. Additionally, the Ceramic Photovoltaic Fuse 10x85 1500DC is a popular choice for solar panel systems that require high voltage protection.

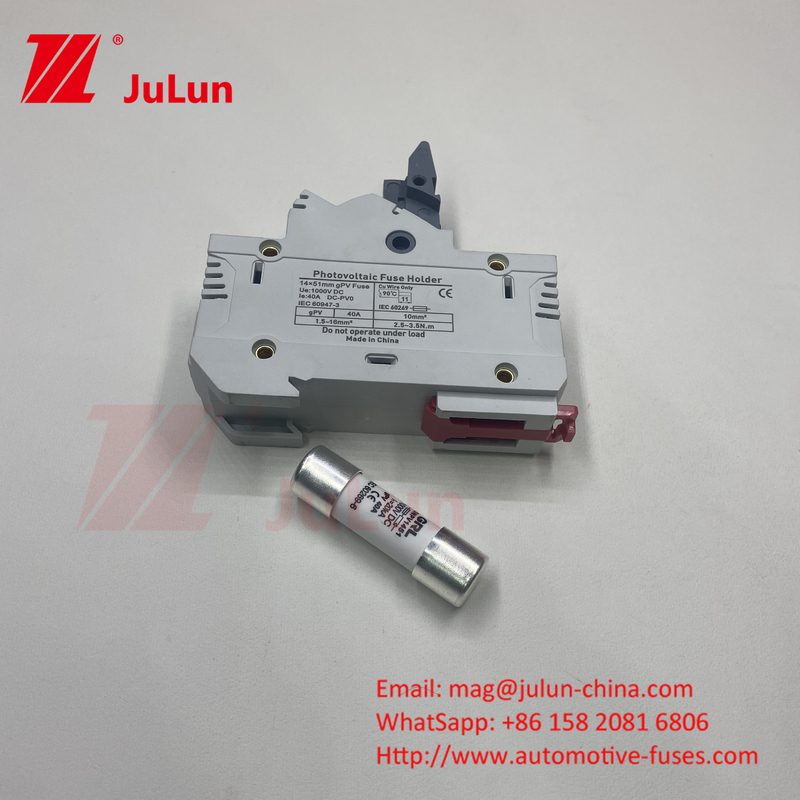

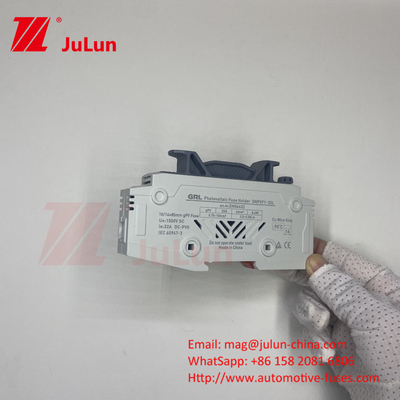

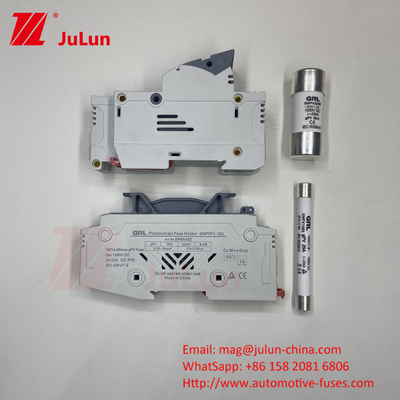

The Solar PV Fuse Holder With Fuse is an excellent product for those looking for a complete fuse solution. The holder is designed to hold the cylindrical fuse securely in place, providing protection to the solar panel system. The breaking capacity of the Solar PV Fuse is 30kA, ensuring maximum protection for the system.

The Fuse Body Material is ceramic, which offers high resistance to heat and electrical conductivity. This makes it ideal for use in solar panel systems, where heat and electrical conductivity are top considerations. The Solar PV Fuses come in various sizes, including 10x38mm, 14x51mm, 14x65mm, 22x58mm, and 10x85mm. This means that customers can choose the size that best suits their system requirements.

In summary, the Solar PV Fuses from SINOPV RLPV JULUN GRT are an excellent choice for anyone seeking to protect their solar panel system from overcurrent and short circuits. They come in various models, sizes, and breaking capacities, making them suitable for a wide range of application occasions and scenarios. Whether you're looking for a marine solar fuse, a ceramic photovoltaic fuse 10x85 1500DC, or any other type of Solar PV Fuse, SINOPV RLPV JULUN GRT has got you covered.

Customization:

Brand Name: SINOPV RLPV JULUN GRT

Model Number: 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 22*58mm 10*85mm 14*65mm 32A 40A 63A

Place of Origin: China

Be suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection

Weight: 20g 30g 40g 50g 80g

Fuse Body Material: Ceramic

Fuse shape: Cylindrical Fuse

Breaking capacity: 30kA

Customization Options:

• 1000VDC 15A
• TUV CE
• TUV CE



Support and Services:

Solar PV Fuse Technical Support:

- Provides protection for photovoltaic systems

- Rated for DC voltage up to 1500V

- Available in various sizes and amperages

Solar PV Fuse Services:

- Fuse testing and certification

- Fuse replacement and installation

- Technical consulting for fuse selection and application



Packing and Shipping:

Product Packaging:

• One Solar PV Fuse unit
• User manual
• Product warranty card

Shipping:

• Ships within 1-2 business days
• Free shipping within the United States
• International shipping available for an additional fee
• Shipped in a sturdy, protective packaging to ensure product safety



FAQ:

What is the brand name of this Solar PV Fuse?

The brand name of this Solar PV Fuse is SINOPV RLPV JULUN GRT.

What is the model number of available Solar PV Fuse?

The available model numbers for Solar PV Fuse are 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10*38mm, 14*51mm, 22*58mm, 10*85mm, 14*65mm, 32A, 40A, and 63A.

Where is this Solar PV Fuse manufactured?

This Solar PV Fuse is manufactured in China.

What is the maximum voltage rating of this Solar PV Fuse?

The maximum voltage rating of this Solar PV Fuse is 1500VDC.

What are the dimensions of the available models of this Solar PV Fuse?

The available models of this Solar PV Fuse have dimensions of 10*38mm, 14*51mm, 22*58mm, 10*85mm, 14*65mm.
