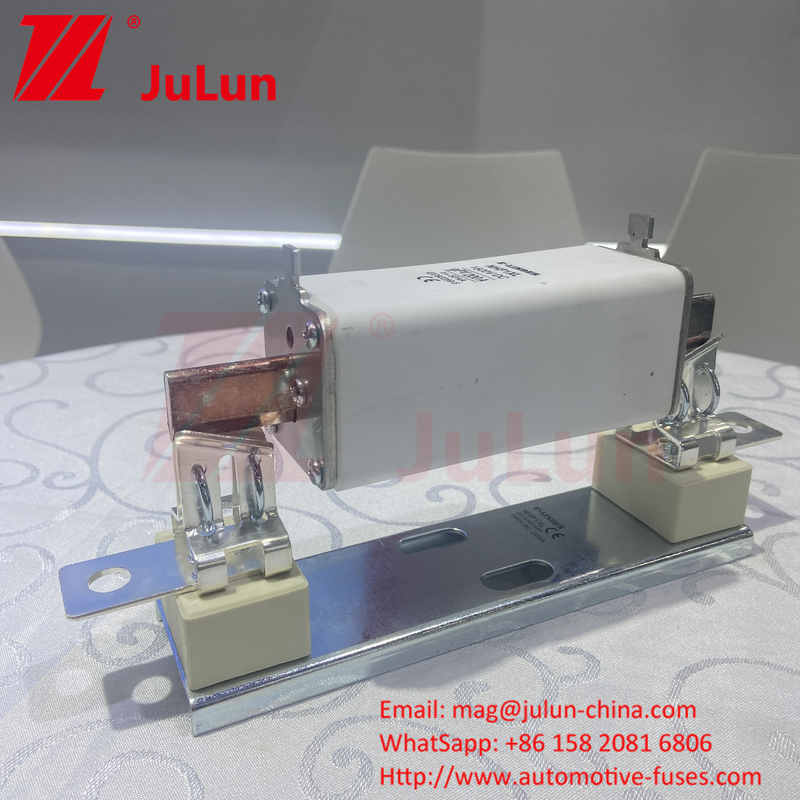

200A Standard Din Guide Fuse Holder Low Voltage 1500VDC Solar Fuse Holder
Product Details:
| Place of Origin: | China |
| Brand Name: | SINOPV RLPV JULUN |
| Certification: | CE |
| Model Number: | 200A 1500VDC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | 18USD |
| Packaging Details: | carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Standart: | IEC60269.6 | Fuse Body Material: | Ceramic |
|---|---|---|---|
| Installation Mode: | Din Guide Fuse Holder | Fuse Element Material: | Silver/Copper/silica/ |
| Rated Current: | 200A | Breaking Capacity: | 50KA |
| Rated Voltage: | 1000VDC 1500VDC 500VDC | ||
| Highlight: | Low Voltage Solar Fuse Holder,200A Solar Fuse Holder,1500VDC Solar Fuse Holder |
||
Product Description
oduct Description:
One of the most popular sizes available is the Cylindrical 14*51mm 25A 1500VDC solar system fuse and fuse holder. This size is perfect for most solar panel installations and will provide the protection you need for your system.
The Solar PV Fuse Holder With Fuse is made with a fuse element material that is composed of silver, copper, and silica. This ensures that you are getting a high-quality product that will last for many years.
This product is lightweight, weighing only 20g, making it easy to install and use. The Solar PV Fuse Holder With Fuse is designed to handle a maximum voltage of 1000VDC and a maximum current of 15A.
Overall, the Solar PV Fuse Holder With Fuse is a reliable and effective solution for protecting your photovoltaic bus box and photovoltaic module. With its various sizes and high-quality materials, you can trust that this product will provide the protection you need for your solar system.
Features:
- Product Name: Solar PV Fuse
- Breaking capacity: 30kA
- Fuse shape: Cylindrical Fuse
- Fuse Element Material: Silver/Copper/Silica
- Installation mode: Din Guide Fuse Holder
- Rated Voltage:
- 1000VDC
- 1500VDC
- 500VDC
- Maximum Current: 15A
- Other features:
- Suitable for use in solar panel systems
- Can be used as a thermal fuse for solar panels
- Can also be used as a marine solar fuse
Technical Parameters:
| Fuse Shape | Cylindrical Fuse |
| Installation Mode | Din Guide Fuse Holder |
| Rated Current | 10A 12A 15A 16A 20A 25A 30A 32A 40A 50A 63A |
| Fuse Body Material | Ceramic |
| Use For | Solar Photovoltaic Inverter |
| Fuse Size | 10x38mm, 14x51mm, 14x65mm, 10x85mm |
| Weight | 20g |
| Breaking Capacity | 30kA |
| Working Temperature | -50~105°C |
| Standard | IEC60269.6 |
Applications:
The Solar PV Fuse is available in various models, including 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, and 30A, with rated voltages of 1000VDC, 1500VDC, and 500VDC. The fuse element material is made of silver, copper, or silica, ensuring maximum protection for your solar panels.
The Solar PV Fuse is designed for installation using a Din Guide Fuse Holder, making it easy to install and use. The fuse holder is available in different sizes, including 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
Whether you're using solar panels for your boat or other marine applications, the Solar PV Fuse is the perfect solution to protect your equipment from damage. The product is made in China, ensuring high-quality standards, and is suitable for various occasions and scenarios where solar power is used.
Choose the SINOPV RLPV JULUN Solar PV Fuse for your next marine solar fuse application and experience the peace of mind that comes with knowing your equipment is protected.
Customization:
Brand Name: SINOPV RLPV JULUN
Model Number: 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 10*85mm 14*65mm
Place of Origin: China
Fuse Shape: Cylindrical Fuse
Working Temperature: -50~105°C
Fuse Body Material: Ceramic
Rated Current: 10A 12A 15A 16A 20A 25A 30A 32A 40A 50A 63A
Weight: 20g
Keywords: TUV CE, Cylindrical 14*51mm 25A 1500VDC solar system fuse and fuse holder
Support and Services:
The Solar PV Fuse product is designed to provide reliable protection for photovoltaic systems. Our technical support team is available to assist with any questions or issues related to the installation, operation, or maintenance of the product.
In addition, we offer a range of services to ensure the optimal performance and longevity of the Solar PV Fuse, including:
- Product training and education
- System design consultation
- Testing and analysis
- Repair and replacement services
- Customized solutions
Our goal is to provide comprehensive support and services to help our customers maximize the benefits of our Solar PV Fuse product.
Packing and Shipping:
Product Packaging:
- 1 Solar PV Fuse
- Installation Manual
Shipping:
- Ships within 1-2 business days
- Free Shipping within the United States
- International Shipping available at an additional cost
FAQ:
A: The brand name of the Solar PV Fuse is SINOPV RLPV JULUN.
Q: What are the available model numbers for the Solar PV Fuse?
A: The available model numbers for the Solar PV Fuse are 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
Q: Where is the Solar PV Fuse manufactured?
A: The Solar PV Fuse is manufactured in China.
Q: What is the voltage rating of the Solar PV Fuse?
A: The voltage rating of the Solar PV Fuse is 500VDC, 1000VDC, or 1500VDC depending on the model.
Q: What is the size of the Solar PV Fuse?
A: The size of the Solar PV Fuse varies depending on the model. The available sizes are 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
