1500VDC High Voltage Solar Fuse Marine Solar Fuse for Solar Photovoltaic Inverter
Product Details:
| Place of Origin: | China |
| Brand Name: | SINOPV RLPV JULUN |
| Certification: | CE |
| Model Number: | 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 10*85mm 14*65mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 2~3USD |
| Packaging Details: | carton |
| Delivery Time: | 3~7day |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Working Temperature: | -50~105°C | Weight: | 20g |
|---|---|---|---|
| Standart: | IEC60269.6 | Installation Mode: | Din Guide Fuse Holder |
| Use For: | Solar Photovoltaic Inverter | Be Suitable For: | Photovoltaic Bus Box, Photovoltaic Module Protection |
| Fuse Shepe: | Cylindrical Fuse | Product Name: | Solar PV Fuse Holder With Fuse |
| Highlight: | 1500VDC Solar Fuse,Solar Photovoltaic Inverter Fuse,Marine Solar Fuse |
||
Product Description
Product Description:
The Solar PV Fuse Holder with Fuse is built to withstand extreme temperatures, with a working temperature range of -50~105°C. This makes it an excellent option for use in marine solar systems, where the conditions can be particularly harsh.

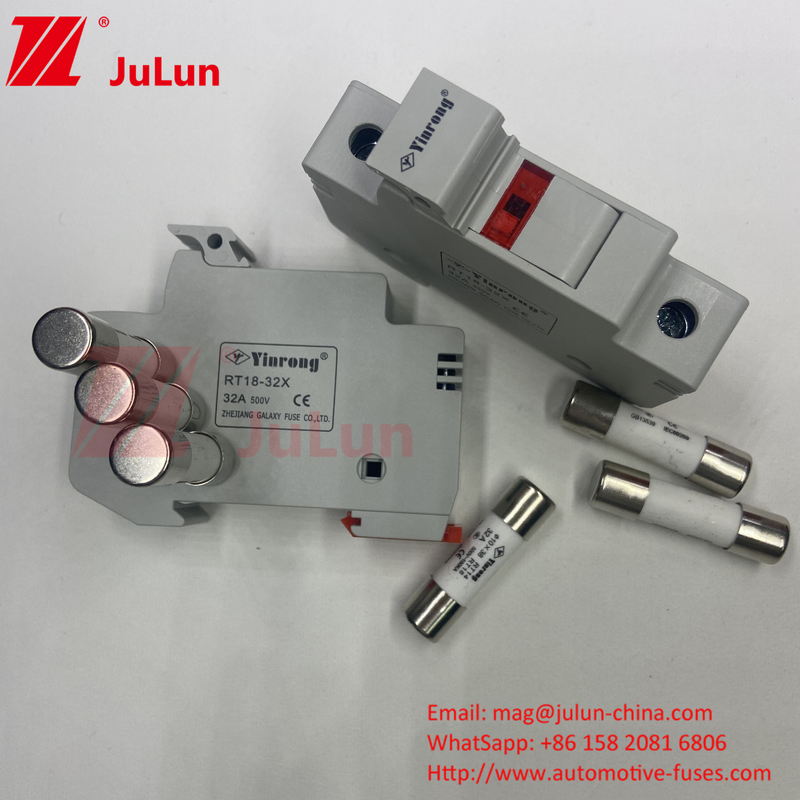

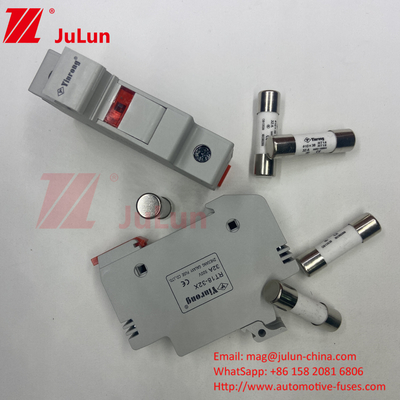

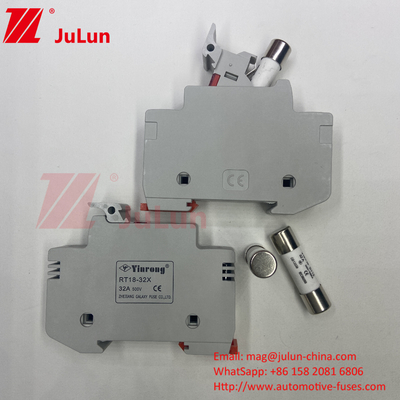

The fuse holder itself is cylindrical, measuring 14*51mm, and comes with a 25A 1500VDC solar system fuse included. This provides added convenience and ensures that you have everything you need to get started with your solar system installation.
Overall, the Solar PV Fuse Holder with Fuse is an excellent choice for anyone looking for a high-quality, reliable fuse for their solar photovoltaic inverter. Whether you are building a new solar system or upgrading an existing one, this fuse and fuse holder combination is sure to meet your needs.
Features:
- Product Name: Solar PV Fuse
- Be suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection
- Working temperature: -50~105°C
- Weight: 20g
- Rated Current:
- 10A
- 12A
- 15A
- 16A
- 20A
- 25A
- 30A
- 32A
- 40A
- 50A
- 63A
- Fuse Element Material: Silver/Copper/silica/
- 10*38mm gPV 1000VDC 32A FUSE
- 1000VDC 15A
- Marine solar fuse
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Rated Current | 10A 12A 15A 16A 20A 25A 30A 32A 40A 50A 63A |
| Use For | Solar Photovoltaic Inverter |
| Fuse Shape | Cylindrical Fuse |
| Standard | IEC60269.6 |
| Weight | 20g |
| Fuse Body Material | Ceramic |
| Be Suitable For | Photovoltaic Bus Box, Photovoltaic Module Protection |
| Rated Voltage | 1000VDC 1500VDC 500VDC |
| Installation Mode | Din Guide Fuse Holder |
| Working Temperature | -50~105°C |
TUV CE, DIN rail solar fuse holder, ceramic photovoltaic fuse 10*85 1500DC
Applications:
The SINOPV RLPV JULUN Solar PV Fuse comes in a variety of models to fit your specific needs, including 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, and 30A. Additionally, this fuse is available in high voltage options, including 500VDC, 1000VDC, and 1500VDC. The 10*38mm and 14*51mm cylindrical options are perfect for your solar system fuse and fuse holder needs.
Installation of the SINOPV RLPV JULUN Solar PV Fuse is made easy with the Din Guide Fuse Holder installation mode. This fuse is designed to fit perfectly into the holder, ensuring a secure and safe connection for your solar energy system. Additionally, this fuse has a breaking capacity of 30kA, ensuring that it can handle any power surge or fault current.
Some of the recommended product application occasions and scenarios for the SINOPV RLPV JULUN Solar PV Fuse include high voltage solar systems, cylindrical 14*51mm 25A 1500VDC solar system fuses, and fuse holders for 1000VDC 15A. Whether you're looking to upgrade your current solar energy system or building a new one from scratch, the SINOPV RLPV JULUN Solar PV Fuse is the perfect choice for your needs.
Customization:
Our Solar PV Fuse product is customizable to meet your specific needs. Here are the product attributes to consider:
- Brand Name: SINOPV RLPV JULUN
- Model Number: 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 10*85mm 14*65mm
- Place of Origin: China
- Be suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection
- Breaking capacity: 30kA
- Working temperature: -50~105°C
- Fuse shape: Cylindrical Fuse
- Fuse Body Material: Ceramic
For example, we can customize a marine solar fuse for you with 1000VDC 15A specifications to fit your specific requirements.
Support and Services:
Our Solar PV Fuse product is designed to provide reliable protection to solar panel systems. We offer technical support and services that include:
- Assistance with product selection and application
- Installation guidance and support
- Troubleshooting and diagnosis of issues
- Repair and replacement services
- Training and educational resources
We are committed to providing our customers with the highest level of support and service for their Solar PV Fuse needs.
Packing and Shipping:
Product Packaging for Solar PV Fuse:
- One Solar PV Fuse
- Instruction manual
- Protective packaging materials
Shipping Information:
- Weight: 0.5 lbs.
- Dimensions: 6 x 4 x 1 inches
- Shipping method: Standard ground
FAQ:
Q: What is the brand name of the Solar PV Fuse product?
A: The brand name of the Solar PV Fuse product is SINOPV RLPV JULUN.
Q: What are the different model numbers available for the Solar PV Fuse?
A: The available model numbers for the Solar PV Fuse are 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
Q: Where is the Solar PV Fuse manufactured?
A: The Solar PV Fuse is manufactured in China.
Q: What voltage can the Solar PV Fuse handle?
A: The Solar PV Fuse can handle 500VDC, 1000VDC, and 1500VDC.
Q: What are the dimensions of the Solar PV Fuse?
A: The dimensions of the Solar PV Fuse are 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
