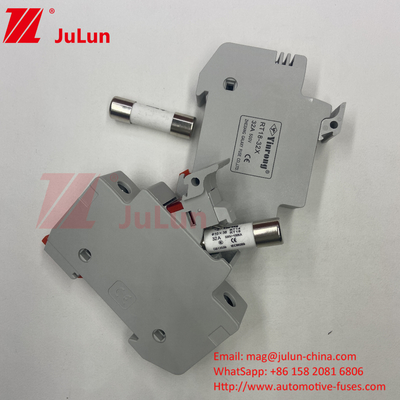

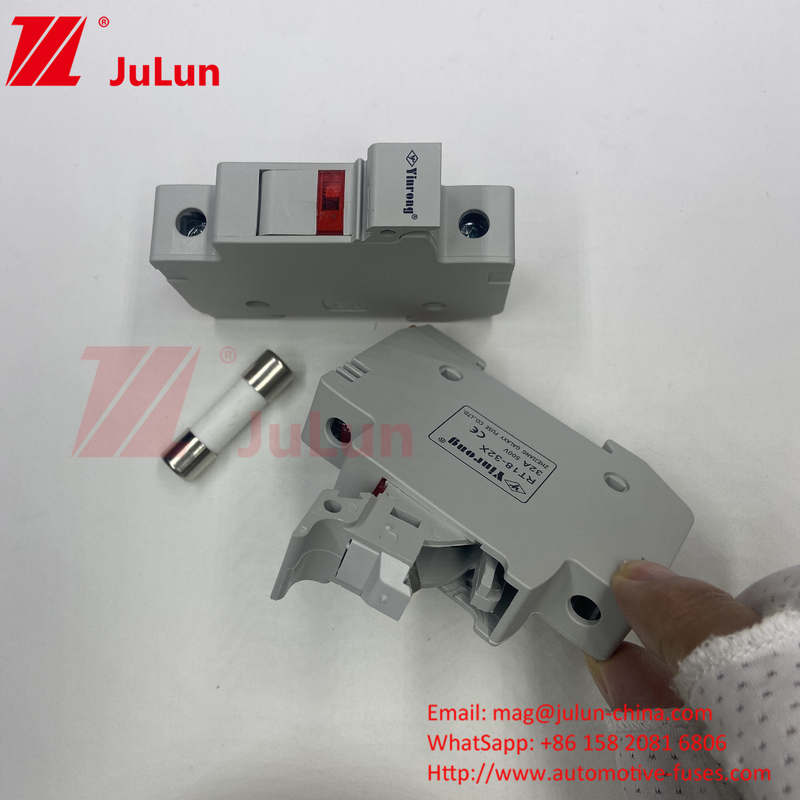

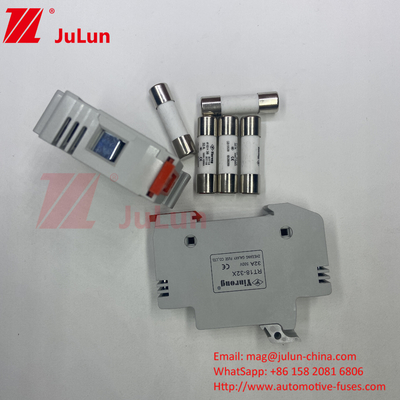

Silver Solar Pv Fuse / Din Rail Solar Fuse Holder Range For Photovoltaic Bus Boxes
Product Details:
| Place of Origin: | China |
| Brand Name: | SINOPV RLPV JULUN |
| Certification: | CE |
| Model Number: | 2A 3A 5A 6A 8A 10A 12A 15A 20A 25A 30A 500VDC 1000VDC 1500VDC10*38mm 14*51mm 10*85mm 14*65mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 2~3USD |
| Packaging Details: | carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Fuse Shepe: | Cylindrical Fuse | Standart: | IEC60269.6 |
|---|---|---|---|
| Be Suitable For: | Photovoltaic Bus Box, Photovoltaic Module Protection | Installation Mode: | Din Guide Fuse Holder |
| Product Name: | Solar PV Fuse Holder With Fuse | Rated Current: | 10A 12A 15A 16A 20A 25A 30A 32A 40A 50A 63A |
| Working Temperature: | -50~105°C | Fuse Body Material: | Ceramic |
| Highlight: | Photovoltaic Bus Boxes Solar Pv Fuse,Silver Solar Pv Fuse,Din Rail Solar Pv Fuse |
||
Product Description
Product Description:
Our Solar PV Fuse is designed to withstand extreme temperatures, ranging from -50 to 105°C, making it a suitable choice for both hot and cold climates. Its rated current options include 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, and 63A, providing flexibility in choosing the right current for your solar system's specific needs.
The Solar PV Fuse is perfect for protecting your solar panels, inverters, and other electrical components from overcurrent, short circuit, and other electrical faults. Its cylindrical shape makes it easy to install and replace, while its durability ensures long-lasting protection for your solar system.
Investing in our Solar PV Fuse guarantees a peace of mind knowing that your solar system is protected from electrical hazards. Don't compromise safety and efficiency, choose our Solar PV Fuse for your solar system's needs.
Features:
- Product Name: Solar PV Fuse
- Fuse Size:
- 10x38mm
- 14x51mm
- 14x65mm
- 10x85mm
- Working Temperature: -50~105°C
- Rated Voltage:
- 1000VDC
- 1500VDC
- 500VDC
- Be Suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection
- Weight: 20g
- TUV CE
- 1000VDC 15A
- Ceramic Photovoltaic Fuse 10*85 1500DC
Technical Parameters:
| Fuse Body Material | Ceramic |
| Rated Current | 10A 12A 15A 16A 20A 25A 30A 32A 40A 50A 63A |
| Installation mode | Din Guide Fuse Holder |
| Use for | Solar Photovoltaic Inverter |
| Weight | 20g |
| Fuse Size | 10x38mm,14x51mm,14x65mm, 10x85mm |
| Fuse Element Material | Silver/Copper/silica/ |
| Working Temperature | -50~105°C |
| Standard | IEC60269.6 |
| Breaking Capacity | 30kA |
Additional keywords: 1000VDC 15A, TUV CE, Ceramic photovoltaic fuse 10*85 1500DC
Applications:
The Solar PV Fuse is rated at 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, and 63A, making it suitable for Photovoltaic Bus Box and Photovoltaic Module Protection. It is also perfect to use for Solar Photovoltaic Inverter. With a breaking capacity of 30kA, the Solar PV Fuse ensures reliable protection against short-circuit and overcurrents in photovoltaic systems.
If you're looking for a high voltage solar fuse, the 10*38mm gPV 1000VDC 32A FUSE of the SINOPV RLPV JULUN Solar PV Fuse is worth considering. This fuse is specifically designed for use in solar applications where high voltage protection is needed.
Overall, the SINOPV RLPV JULUN Solar PV Fuse is an efficient and reliable solution for photovoltaic system protection. Its high-quality build and excellent performance make it an ideal choice for various solar applications.
Customization:
For a specific customization, we offer a cylindrical 14*51mm 25A 1500VDC Solar System Fuse and Fuse Holder with TUV CE certification.
Support and Services:
The Solar PV Fuse product is designed to provide reliable protection for photovoltaic systems. Our technical support team is available to assist with any questions or issues related to installation, operation, and maintenance of the product. We also offer a range of services, including testing and certification, to ensure optimal performance and compliance with industry standards. Our goal is to provide comprehensive support and services to help our customers maximize the benefits of their solar power systems.
Packing and Shipping:
Product Packaging:
- The Solar PV Fuse product will be packaged in a sturdy cardboard box to ensure its safe transportation.
- The box will contain the Solar PV Fuse product and any necessary installation instructions and documentation.
Shipping:
- Our Solar PV Fuse product will be shipped via a reputable courier service.
- Customers will receive a tracking number to monitor their shipment's progress and estimated delivery date.
- We ship worldwide and the delivery time will depend on the customer's location.
- We take pride in ensuring that our products are properly packaged and shipped to arrive to our customers in excellent condition.
FAQ:
Q: What is the brand name of this Solar PV Fuse?
A: The brand name of this Solar PV Fuse is SINOPV RLPV JULUN.
Q: Where is this Solar PV Fuse made?
A: This Solar PV Fuse is made in China.
Q: What are the different model numbers available for this Solar PV Fuse?
A: The different model numbers available for this Solar PV Fuse are: 2A, 3A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 500VDC, 1000VDC, 1500VDC, 10*38mm, 14*51mm, 10*85mm, 14*65mm.
Q: What is the voltage rating of this Solar PV Fuse?
A: This Solar PV Fuse is available in three voltage ratings: 500VDC, 1000VDC, and 1500VDC.
Q: What are the dimensions of this Solar PV Fuse?
A: This Solar PV Fuse is available in four different dimensions: 10*38mm, 14*51mm, 10*85mm, and 14*65mm.
