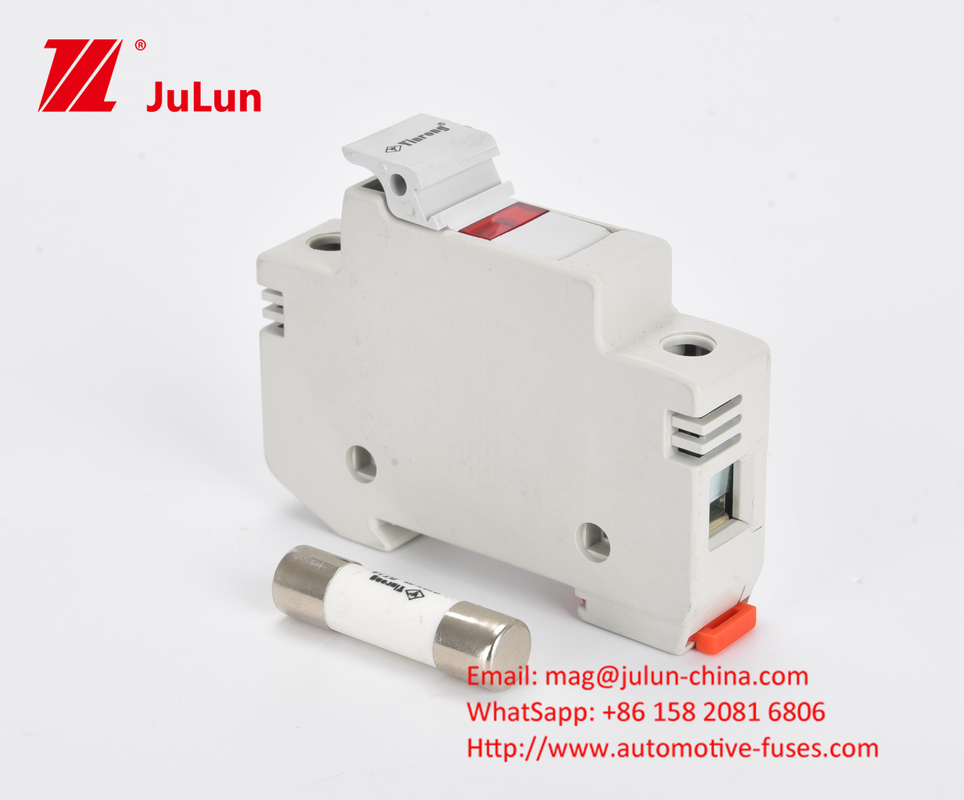

Solar PV Fuse 10*38mm AC500V 32A GG RT18-32X AC500V With Holder
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | UL |
| Model Number: | YR RT18-32X AC500V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 1USD |
| Packaging Details: | carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/day |
|
Detail Information |
|||
| Breaking Capacity: | 30kA | Fuse Shepe: | Cylindrical Fuse |
|---|---|---|---|
| Fuse Body Material: | Ceramic | Fuse Size: | 10x38mm,14x51mm,14x65mm, 10x85mm |
| Fuse Element Material: | Silver/Copper/silica/ | Working Temperature: | -50~105°C |
| Be Suitable For: | Photovoltaic Bus Box, Photovoltaic Module Protection | Installation Mode: | Din Guide Fuse Holder |
| Highlight: | AC500V Solar PV Fuse,32A Solar PV Fuse,10*38mm Solar PV Fuse |
||
Product Description
Silver/Copper/Silica Solar PV F - IEC60269.6 Standart - Temperature Range -50-105°C Collecting Box
Product Description:
Solar PV Fuse is a cylindrical fuse with a diameter of 14*51mm and a rated current of 25A, and is suitable for photovoltaic bus box and photovoltaic module protection. It has a breaking capacity of 30kA and is made of ceramic material. It is mainly used for solar photovoltaic inverters and other solar system protection. In addition, our Solar PV Fuse also includes 10*38mm gPV 1000VDC Fuse with a rated current of 32A and a Marine solar fuse, which can effectively protect solar system and ensure its safe and stable operation.
Features:
- Product Name: Solar PV Fuse
- Rated Currents: 10A 12A 15A 16A 20A 25A 30A 32A 40A 50A 63A
- Rated Voltage: 1000VDC 1500VDC
- Weight: 20g
- Be Suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection
- Breaking capacity: 30kA
- Marine solar fuse: 1000VDC 15A
Technical Parameters:
| Be suitable for | Fuse Element Material |
|---|---|
| Photovoltaic Bus Box, Photovoltaic Module Protection | Silver/Copper/silica/ |
| Fuse shepe | Fuse Size |
| Cylindrical Fuse | 10x38mm,14x51mm,14x65mm, 10x85mm |
| Product Name | Rated Voltage |
| Solar PV Fuse Holder With Fuse | 1000VDC 1500VDC |
| Rated Current | use for |
| 10A 12A 15A 16A 20A 25A 30A 32A 40A 50A 63A | Solar Photovoltaic Inverter |
| Installation mode | Standart |
| Din Guide Fuse Holder | IEC60269.6 |
| Marine solar fuse | High voltage solar fuse |
| 10*38mm gPV 1000VDC 32A FUSE |
Applications:
JULUN's YR RT Fuse is specially designed for marine solar application and Solar PV system. Its cylindrical 14*51mm size and 25A 1500VDC rating make it perfect for a variety of Solar PV system installations. The fuse's body is made of ceramic, while the fuse element material can be selected from silver, copper, silica, etc. It is compliant with IEC60269.6 standard and can work within a temperature range of -50~105°C. Moreover, the fuse also allows for a range of current ratings from 10A, 12A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, to 63A. With the superior quality and reliable performance, JULUN's YR RT Fuse is the perfect choice for any Solar PV system.
Customization:
JULUN YR RT Ceramic Photovoltaic Fuse- Brand Name: JULUN
- Model Number: YR RT
- Place of Origin: China
- Fuse Body Material: Ceramic
- Be suitable for: Photovoltaic Bus Box, Photovoltaic Module Protection
- Fuse Size: 10x38mm,14x51mm,14x65mm, 10x85mm
- Working Temperature: -50~105°C
- Fuse Shape: Cylindrical Fuse
- Speciality: Ceramic photovoltaic fuse 10*85 1500DC, Solar panel thermal fuse, Cylindrical 14*51mm 25A 1500VDC solar system fuse and fuse holder
Support and Services:
We provide a comprehensive range of technical support and services for our Solar PV Fuse products. This includes:
- Installation and commissioning assistance
- Troubleshooting and diagnostics
- Software updates
- Maintenance and repair services
- Technical advice and consultancy
We are committed to providing our customers with the highest quality technical support and services for our Solar PV Fuse products. Our team of experienced engineers and technicians are available to assist you with any technical issues or queries you may have.
Packing and Shipping:
Solar PV Fuses are shipped in a cardboard box with a foam insert. The size of the box depends on the quantity and type of fuses being shipped. Fuses are individually wrapped in bubble wrap or foam and placed in the box. The box is then sealed with tape.
The box is then placed in a corrugated cardboard box for shipping. The box is sealed with tape and labeled according to the shipping destination.
The boxes are then placed on a pallet and secured with shrink-wrap and straps. The pallet is then loaded onto a truck or train for shipping.
The shipping process is completed when the boxes are delivered to the customer.
FAQ:
- Q: What is the Brand Name of this Solar PV Fuse?
A: The Brand Name of this Solar PV Fuse is JULUN. - Q: What is the Model Number of this Solar PV Fuse?
A: The Model Number of this Solar PV Fuse is YR RT. - Q: Where is this Solar PV Fuse made?
A: This Solar PV Fuse is made in China. - Q: What is the material of this Solar PV Fuse?
A: This Solar PV Fuse is made of plastic and metal. - Q: Is this Solar PV Fuse waterproof?
A: Yes, this Solar PV Fuse is waterproof and designed to be used outdoors.
