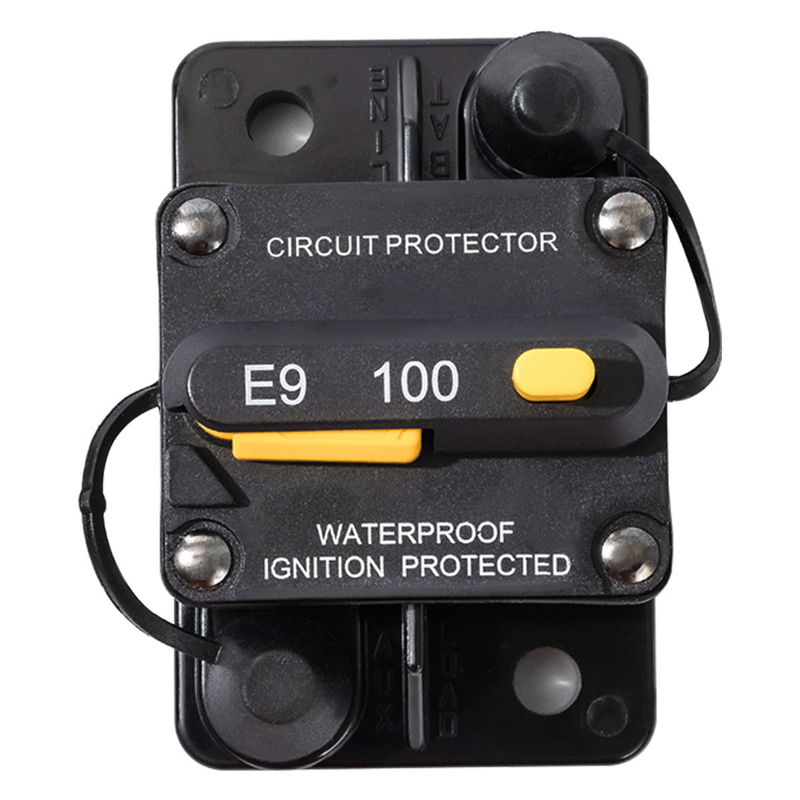

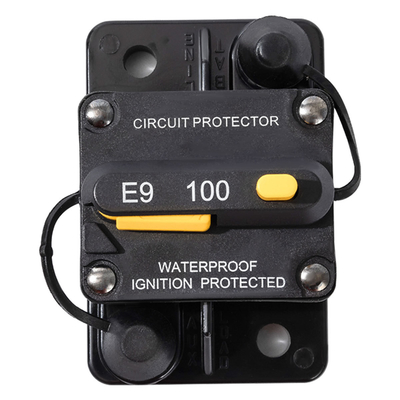

100A Manual Reset Automotive Circuit Breaker Switching Road Cutting Self Recovery
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | F433-100A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rating Current: | 100A | Rated Voltage: | 48VDC Maximum |
|---|---|---|---|
| Discovery Capacity: | 3000A 48 VDC | Environmental Temperature: | ‘-32 ° C To 82 ° C (-25 ° F To 180 ° F) |
| Nail Size: | ¼”-28 | Uses: | Mainly Used Ships, And The Electrical Current Of The RV Is Overloaded |
| Highlight: | 100A Automotive Circuit Breaker,Automotive Manual Reset Circuit Breaker,48VDC Automotive Circuit Breaker |
||
Product Description
Automotive Circuit Breaker 100A Manual Reset Band Switching Road Cutting Protector Self -Recovery Fuse Seat Square
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation
Model: F433-100A
Rating current: 100A
Rated voltage: 48VDC Maximum
Discovery capacity: 3000A 48 VDC
Environmental temperature: ‘-32 ° C to 82 ° C (-25 ° F to 180 ° F)
Storage temperature: -34 ° C to 149 ° C (-30 ° F to 300 ° F)
Nail size: ¼”-28
Test standards: SAE J1627 J1171 UL1500 (Igniton Protected)
Net weight: 104g
Mao heavy: 108g
Size: 72*46*31mm
Uses: Mainly used ships, and the electrical current of the RV is overloaded.
Function: Prevent excessive current and protect electrical appliances.
Operation method: switch -type power seat: convenient operation. When disconnection, you do n’t need to remove it. Just press it to disconnect and use it normally. Push the disconnected red button back.
