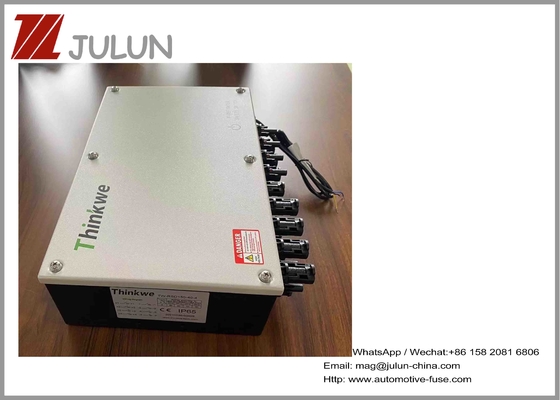

Quick Roof Photovoltaic Firefighter Safety Switch New Energy Electric Ip65
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;CSA |
| Model Number: | TW-RSD150-40-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 10 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,00 PCS |
|
Detail Information |
|||
| Strings: | 1~10 Strings Available | Rated Voltage: | Up To 1500V |
|---|---|---|---|
| Rated Current: | 40A | Certification: | CE |
| Protection: | IP65 PROTECTION And Anti UV | Control: | APP Remote Control |
| Signal: | Shutdown Feedback SIGNAL | Auto: | Auto Shutdown Exceeding 70°C |
| Life: | 1000 MECHANICAL LIFE CYCLES | Isolator With: | CE,CB,TUV,SAA |
| Highlight: | Roof Photovoltaic Firefighter Safety Switch,Electric Ip65 Firefighter Safety Switch,40A Current Fire Safety Switch |
||
Product Description
Quick Switch Roof PHOTOVOLTAIC New Energy Residential Solar Panel Electric Fire Safety Switch IP65 1500V 40
Why do photovoltaic systems need to be quickly shut down?
Photovoltaic power plant fire easy, rescue difficult.
In high voltage photovoltaic systems, module hot spots, cluster mismatches, broken cables, tight connections and inverters
Ash accumulation and other problems can easily cause fire in photovoltaic power stations. Photovoltaic power station operation and maintenance time is 25 years, with the passage of time
A quick shutdown can cut off the current between components and the inverter or between components, creating a fire fighter
Safe rescue environment, reduce fire loss, protect personal and property safety.
Equipment aging, accident probability increases exponentially. However, in the event of a fire, only turn off the inverter to power
For the ac of the network, there are hundreds or even hundreds of DC sides between the components and between the components and the inverter
Thousands of volts of high voltage, if the firefighters rushed to rescue, will be a threat to the life of firefighters. In this case,
Let it burn.
Product highlights:
Shut off 6-10 strings of components
Maximum loop current 55A
Maximum loop voltage 1500Vdc
CE standard
Sheet metal housing, IP65 protection grade
Multiple interface types available (Gran /MC4 terminal)
Disconnecting switch complies with TUV, CE, CB, SAA, UL certification
Equipped with a waterproof air vent valve to avoid condensation inside the shell
Real-time detection of the highest environmental temperature inside the shell, when the internal temperature exceeds 70℃, automatic switch off
Applicable to industrial and commercial, ground power stations and other photovoltaic systems
