20A 30A 40A 50A Manual Reset Overcurrent Circuit Breaker Plastic Type Bolt Wings
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | UL;IEC;CSA;CCC;ROHS |
| Model Number: | F3088 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 6-28V | Rated Current: | 20A/30A/40A/50A (5-50A Available) |
|---|---|---|---|
| Interrupt Rated Value: | 2.5ka @ 12VDC | Work Temperature: | -40 ° F-185 ° F (-40 ° C-85 ° C) |
| Torque Level: | 15in-lb | IP66 Waterproof: | IP66 On Plastic Cover (Except For Terminal) |
| Highlight: | Bolt Wings Overcurrent Circuit Breaker,40A Manual Reset Circuit Breaker,Plastic Overcurrent Circuit Breaker |
||
Product Description
20A/30A/40A/50A Manual Reset, The Plastic Type Bolt Wings Of The Wing Overcurrent Protection
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.
Product Presentation

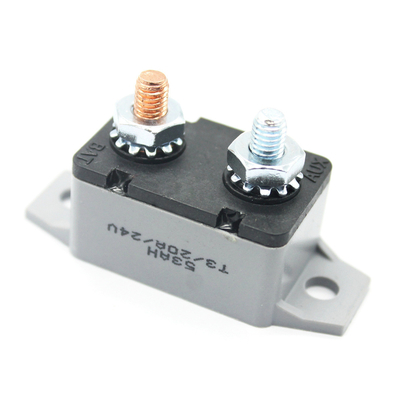

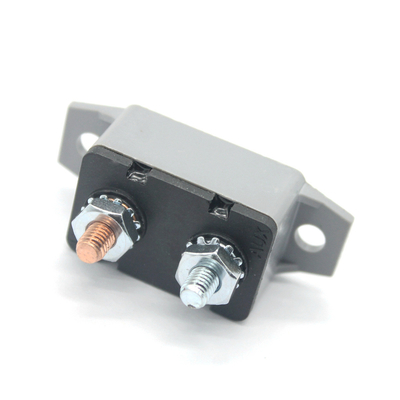

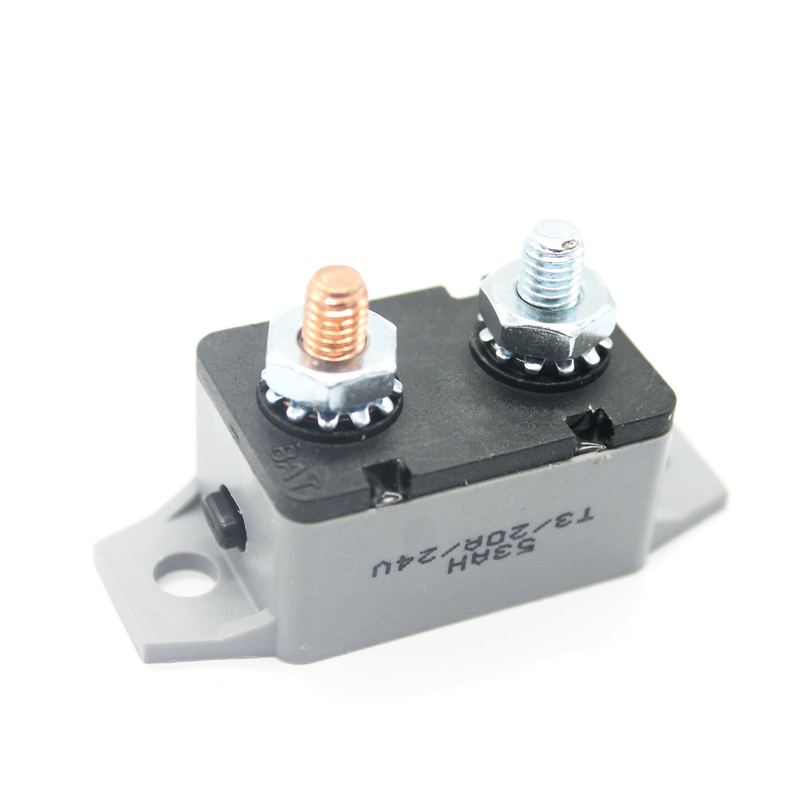

Manual reset circuit breaker with fixed wings
Rated voltage: 6-28V
Rated current: 20A/30A/40A/50A (5-50A available)
Suitable for 6-28VDC applications
Manual reset button (in BAT. Side)
Plastic body and installation bracket
#10-32 bolt length .37in (9.4mm); bolt spacing .69in (17.5mm)
Wing -installed pore distance: 1.56in (39.6mm)
Interrupt rated value: 2.5ka @ 12VDC
Work temperature: -40 ° F-185 ° F (-40 ° C-85 ° C)
Torque level: 15in-lb
IP66 Waterproof: IP66 On Plastic Cover (Except for Terminal)
Application: battery charger, audio, cars, trucks, bus, ships, casual cars, trailers, etc.
