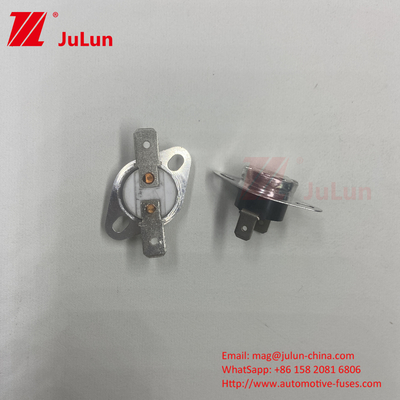

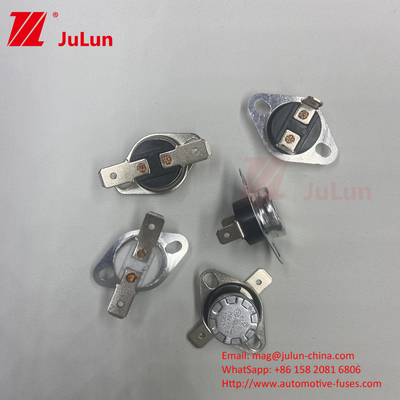

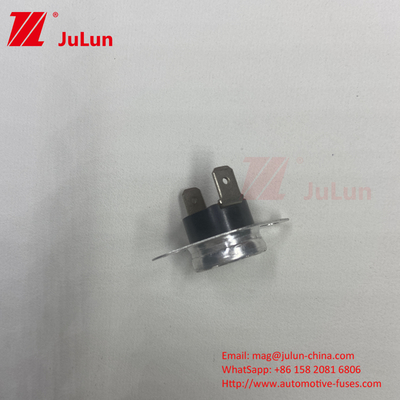

KSD301 KSD302 92 Degrees Centigrade Snap Disc Thermostat Temperature Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Temperature Deviation:: | ±3 / ±5 / ±10 Degree Or According To Client's Request | Model Name: | KSD301 KSD302 KSD 130°C 92°C 55°C |
|---|---|---|---|
| House: | Plastic Or Ceramic. | Two Kinds Of Mounting Bracket: | Movable Or Immovable |
| Terminal Type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional | Temperature Sensor Face: | Aluminum Cap Or Copper Head. |
| Recovery And Action Temperature Difference: | 0 To 25 Degrees, Or According To Client's Request. | Contact Type: | Normally Closed Or Normally Open |
| Highlight: | KSD301 Snap Disc Thermostat,92 Degrees Centigrade Snap Disc Thermostat,KSD302 Snap Disc Thermostat |
||
Product Description
Product Description:
The terminal type options include the 187 series of 4.8*0.5mm and 4.8*0.8mm, as well as the 250 series of 6.3*0.8mm. Additionally, the bending angle can be customized to 0~90°C depending on your specific needs.
With an action temperature range of 0~250℃, this temperature sensor is perfect for use in a range of settings, from hot water kettles to other heating applications. The insulation resistance is AC50Hz 1500V / Min, ensuring that the device is safe and reliable in its normal state and will not experience any breakdown or blinding.
The recovery and action temperature difference is 0 to 25 degrees, or according to the client's request. This feature allows for even more customization and precision in temperature control.
Overall, the Thermistor Temperature Sensor is a highly useful and versatile device that can be used in a range of settings. Whether you need a pin type temperature control switch for your hot water kettle or another heating application, this temperature sensor is the perfect solution.
Features:
- Product Name: Thermistor Temperature Sensor
- Model name: KSD301 KSD302 KSD 130°C 92°C 55°C
- House: Plastic Or Ceramic
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Life cycle: ≥100000 Times
- Two kinds of mounting bracket: Movable Or Immovable
- Temperature Range: 0~250°C
- Compatible with M6 screws
- Ideal for Hot Water Kettle
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| House | Plastic Or Ceramic |
| Circuit Resistance | ≤50mΩ (Initial Value) |
| Insulation Resistance | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Contact Type | Normally Closed Or Normally Open |
| Recovery and Action Temperature Difference | 0 To 25 Degrees, Or According To Client's Request |
| Terminal Type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Life Cycle | ≥100000 Times |
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Mounting Bracket | Two kinds of mounting bracket: Movable Or Immovable |
| Temperature Deviation | ±3 / ±5 / ±10 Degree Or According To Client's Request |
KSD301, 10A 250V, Temperature control switch
Applications:
The JULUN Thermistor Temperature Sensor is a reliable and durable product that can be used in a variety of applications. It is available in two models: KSD301 and KSD302 Bimetal Thermostat. This product originates from China and has been certified by CE, UL, and CCC.
The Thermistor Temperature Sensor is suitable for use in a wide range of scenarios. Some of the most common applications include:
- Incubators: The Thermistor Temperature Sensor can be used to monitor and control the temperature inside an incubator. This is important for ensuring that eggs or other materials are kept at the correct temperature to promote healthy growth or development.
- Hot Water Kettles: The Thermistor Temperature Sensor can be used to regulate the temperature of hot water kettles. This ensures that the water is heated to the desired temperature and prevents over-heating.
- Temperature Controllers: The Thermistor Temperature Sensor can be used in temperature controllers for a wide range of applications. For example, it can be used to control the temperature of ovens, refrigerators, and other appliances.
The minimum order quantity for the Thermistor Temperature Sensor is 100, and it is priced between 0.7~1.5. The packaging details include a Carton and the delivery time is 1~2weeks. Payment terms are T-T and the supply ability is 1000K/times. The life cycle of this product is ≥100000 Times and the recovery and action temperature difference is 0 To 25 Degrees, or according to client's request. The Thermistor Temperature Sensor is equipped with two kinds of mounting brackets: movable or immovable, and the temperature sensor face is available in either aluminum cap or copper head. Temperature deviation can be ±3 / ±5 / ±10 Degree or according to client's request.
Customization:
Brand Name: JULUN
Model Number: KSD301 KSD302 Bimetal Thermostat
Place of Origin: China
Certification: CE UL CCC
Minimum Order Quantity: 100
Price: 0.7~1.5
Packaging Details: Carton
Delivery Time: 1~2weeks
Payment Terms: T-T
Supply Ability: 1000K/times
Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
Temperature sensor face: Aluminum Cap Or Copper Head.
House: Plastic Or Ceramic.
Contact type: Normally Closed Or Normally Open
Two kinds of mounting bracket: Movable Or Immovable
Other Product Attributes:
-Temperature control switch
-M6
-Operational temperature: 0~250°C
Support and Services:
The Thermistor Temperature Sensor product comes with a range of technical support and services to ensure that you get the most out of your purchase:
- Product manuals and datasheets to provide technical information and specifications
- Online resources such as FAQs, troubleshooting guides, and knowledge bases
- Technical support through phone, email, or live chat
- Warranty and repair services to ensure that your product is functioning properly
- Calibration and testing services to verify the accuracy of your product
Packing and Shipping:
Product Packaging:
The Thermistor Temperature Sensor product will be packed securely in a box with protective foam inside to prevent any damage during shipping. The product will be accompanied by a user manual and a warranty card.
Shipping:
The product will be shipped through reliable courier services and will be delivered within the promised time frame. The shipping charges will depend on the destination and will be calculated at the time of checkout. Customers will receive a tracking number to track their shipment.
FAQ:
Q: What is the brand name of the thermistor temperature sensor?
A: The brand name is JULUN.
Q: What is the model number of the thermistor temperature sensor?
A: The model number is KSD301 KSD302 Bimetal Thermostat.
Q: Where is the thermistor temperature sensor made?
A: It is made in China.
Q: What certifications does the thermistor temperature sensor have?
A: It has CE, UL, and CCC certifications.
Q: What is the minimum order quantity for the thermistor temperature sensor?
A: The minimum order quantity is 100.
Q: What is the price range for the thermistor temperature sensor?
A: The price range is between 0.7~1.5.
Q: What are the packaging details for the thermistor temperature sensor?
A: The packaging details are carton.
Q: What is the delivery time for the thermistor temperature sensor?
A: The delivery time is 1~2 weeks.
Q: What are the payment terms for the thermistor temperature sensor?
A: The payment terms are T-T.
Q: What is the supply ability for the thermistor temperature sensor?
A: The supply ability is 1000K/times.
