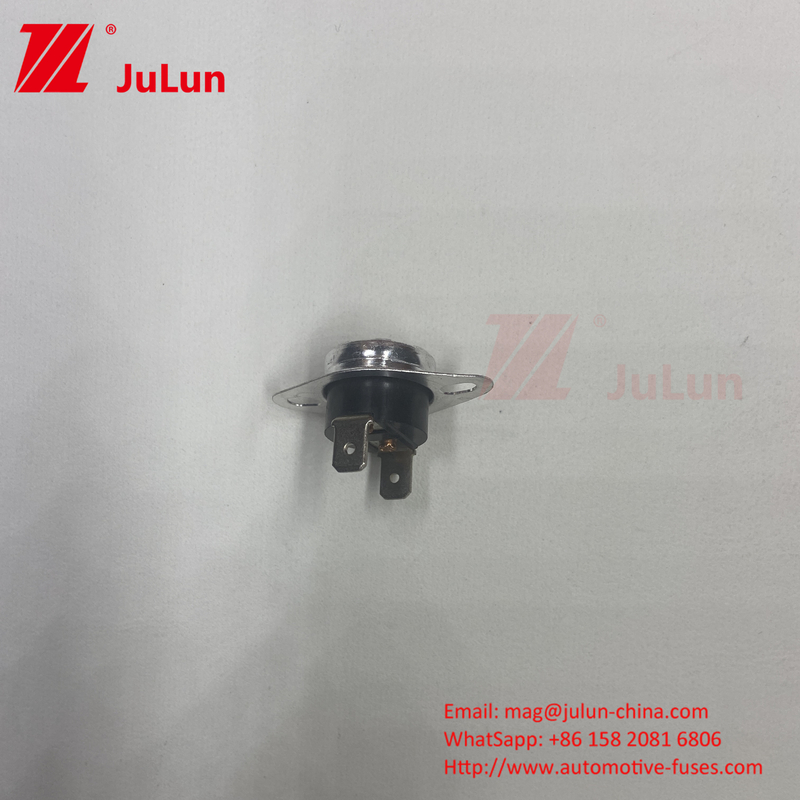

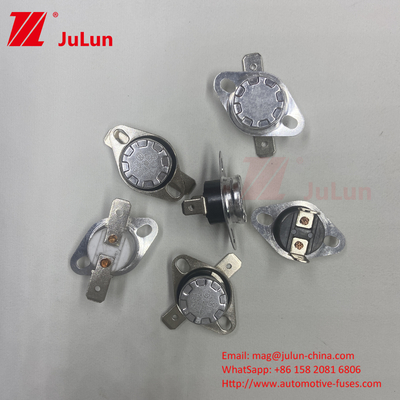

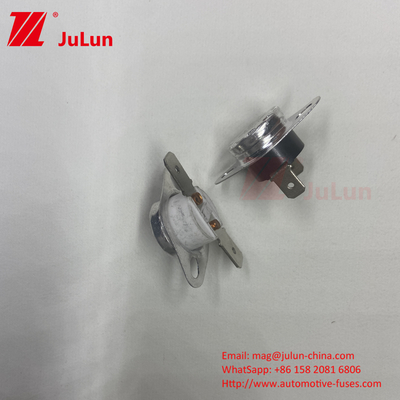

KSD301 130°C ≥100000 Times Life Cycle Hexagonal Product With Movable Mounting Bracket
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Life Cycle: | ≥100000 Times | Circuit Resistance: | ≤50mΩ (Initial Value) |
|---|---|---|---|
| Model Name: | KSD301 KSD302 | Insulation Resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| ActionTemperature: | 0~250℃ | Temperature Deviation:: | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Temperature Sensor Face: | Aluminum Cap Or Copper Head. | House: | Plastic Or Ceramic. |
| Highlight: | KSD301 Hexagonal Product,Hexagonal Product With Movable Mounting Bracket |
||
Product Description
Product Description:
One of the standout features of this temperature sensor is its recovery and action temperature difference, which can be set to 0 to 25 degrees or customized according to the client's request. This ensures that it provides accurate temperature readings at all times, even in challenging environments.
The Thermistor Temperature Sensor also comes with two kinds of mounting brackets, movable or immovable, which makes it easy to install in any setting. Additionally, it has a circuit resistance of ≤50mΩ (initial value), which ensures that it is highly reliable and stable.
When it comes to voltage and current, the Thermistor Temperature Sensor is designed to work with AC 125V Max 15A, AC250V 5A 10A 15A Max 16A, which makes it suitable for a wide range of applications. Whether you need to measure temperature in a small household appliance or a large commercial system, this sensor can handle the job.
Finally, the Thermistor Temperature Sensor is available in a metal expansion type with an M6 size, which makes it easy to integrate into any system or device. Overall, if you need a reliable and accurate temperature sensor for your household appliance or commercial application, the Thermistor Temperature Sensor is an excellent choice.
Features:
- Product Name: Thermistor Temperature Sensor
- Contact type: Normally Closed Or Normally Open
- Terminal type:
- A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm
- B. Terminal Angle: Bending Angle: 0~90°C Optional
- House: Plastic Or Ceramic
- Circuit resistance: ≤50mΩ (Initial Value)
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Pin Type
- Compatible with Hot Water Kettle
- Temperature range: 0~250°C
Technical Parameters:
| Terminal Type | A. 187 series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm |
| Terminal Angle | Bending Angle: 0~90°C Optional |
| Temperature Sensor Face | Aluminum Cap or Copper Head |
| Model Name | KSD301 KSD302 |
| Temperature Deviation | ±3 / ±5 / ±10 Degree or according to client's request |
| Action Temperature | 0~250℃ |
| Circuit Resistance | ≤50mΩ (Initial Value) |
| Life Cycle | ≥100000 Times |
| Contact Type | Normally Closed or Normally Open |
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Mounting Bracket | Two kinds of mounting bracket: Movable or Immovable |
Temperature control switch, hexagonal, M6
Applications:
Designed for a variety of applications, the JULUN Thermistor Temperature Sensor is a popular choice for hot water kettles, incubators, and other equipment that requires precise temperature control. With a circuit resistance of ≤50mΩ (Initial Value) and a life cycle of ≥100000 Times, this temperature sensor is built to last.
Choose from two kinds of mounting brackets - movable or immovable - to best suit your needs. The action temperature of this sensor ranges from 0~250℃, and the recovery and action temperature difference is 0 to 25 degrees, or according to the client's request.
Packaging for the JULUN Thermistor Temperature Sensor is done in cartons, with a delivery time of 1~2 weeks after payment is received. Payment terms are T-T, and supply ability is 1000K/times.
Customization:
Our temperature deviation options include ±3 / ±5 / ±10 Degree or according to the client's request. Contact types are available in Normally Closed or Normally Open. Insulation resistance is AC50Hz 1500V/Min, No Breakdown Blinding (Normal State). The housing is available in Plastic or Ceramic. Recovery and action temperature difference options are 0 To 25 Degrees or according to the client's request.
Some key features of this product include KSD301, threaded brass, and temperature controller.
Support and Services:
The Thermistor Temperature Sensor product comes with comprehensive technical support and services to ensure smooth operation and maximum performance. Our team of expert technicians is available to assist with any technical issues and provide guidance on product installation, usage, and maintenance. Additionally, we offer product repair and replacement services to ensure minimal downtime in the event of a malfunction or failure. Our technical support and services are designed to help customers maximize the value of their investment in our Thermistor Temperature Sensor product.
