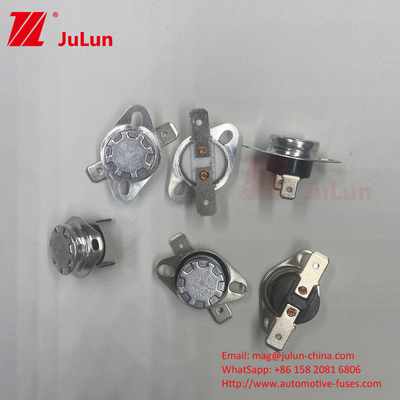

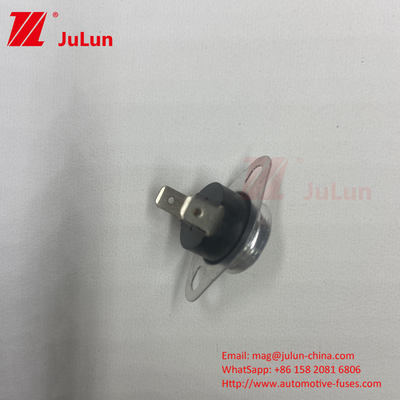

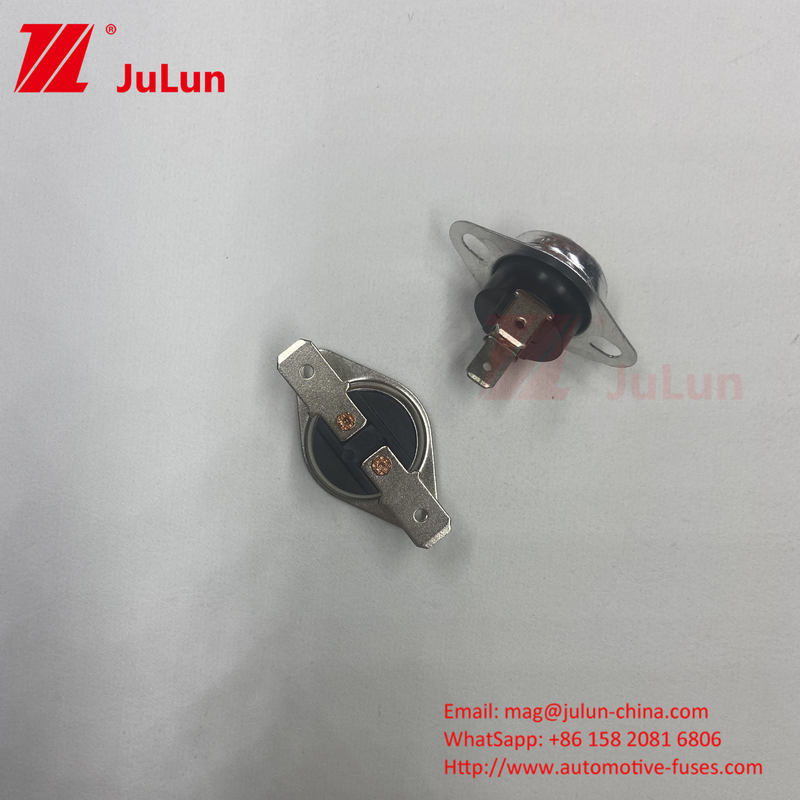

ContrBimetal Disc Snap Action Thermostats KSD301 KSD302 Low Temperature Limited
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Temperature Deviation:: | ±3 / ±5 / ±10 Degree Or According To Client's Request | Terminal Type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
|---|---|---|---|
| ActionTemperature: | 0~250℃ | Model Name: | KSD301 KSD302 |
| Life Cycle: | ≥100000 Times | Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| House: | Plastic Or Ceramic. | Temperature Sensor Face: | Aluminum Cap Or Copper Head. |
| Highlight: | Low Temperature Limited Snap Action Thermostats,KSD301 KSD302 Snap Action Thermostats,ContrBimetal Disc Snap Action Thermostats |
||
Product Description
Product Description:
Designed for use in both plastic and ceramic housings, this temperature sensor is highly versatile and can be used in a variety of environments. The temperature sensor face is available in both aluminum cap and copper head, giving users the flexibility to choose the best option for their specific application.
With a circuit resistance of ≤50mΩ (Initial Value), the Thermistor Temperature Sensor is a highly accurate and reliable device. It is capable of handling a voltage and current of up to AC 125V Max 15A; AC250V 5A 10A 15A Max 16A, making it suitable for use in a range of high power applications.
The Thermistor Temperature Sensor is an ideal choice for applications such as hot water kettle, where precise temperature control is crucial. It is capable of handling currents of 10A 250V and 10~20A, making it suitable for use in a range of high power applications.
Features:
- Product Name: Thermistor Temperature Sensor
- Insulation resistance: AC50Hz 1500V / Min, No Breakdown Blinding (Normal State)
- Life cycle: ≥100000 Times
- House: Plastic Or Ceramic
- Two kinds of mounting bracket: Movable Or Immovable
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Application: Household appliance, Hot Water Kettle, Household appliance
Technical Parameters:
| Model Name | KSD301 | KSD302 |
|---|---|---|
| Mounting Bracket | Movable | Immovable |
| Life Cycle | ≥100000 Times | |
| Temperature Deviation | ±3 / ±5 / ±10 Degree Or According To Client's Request |
±3 / ±5 / ±10 Degree Or According To Client's Request |
| Temperature Sensor Face | Aluminum Cap | Copper Head |
| Recovery and Action Temperature Difference | 0 To 25 Degrees Or According To Client's Request |
|
| Action Temperature | 0~250℃ | |
| Voltage & Current | AC 125V Max 15A AC250V 5A 10A 15A Max 16A |
AC 125V Max 15A AC250V 5A 10A 15A Max 16A |
| Circuit Resistance | ≤50mΩ (Initial Value) | |
| Contact Type | Normally Closed | Normally Open |
This thermistor temperature sensor can be used in various applications such as incubators, hexagonal temperature controllers, and more.
Applications:
The JULUN Thermistor Temperature Sensor product has a circuit resistance of ≤50mΩ (Initial Value), making it efficient and reliable. The terminal types available for the product are 187 series of 4.8*0.5mm and 4.8*0.8mm and 250 series of 6.3*0.8mm. The terminal angle can be bent at an angle of 0~90°C, making it versatile and easy to use. The action temperature range is from 0~250℃, making it suitable for a wide range of temperature control applications.
The JULUN Thermistor Temperature Sensor product is housed in either plastic or ceramic, making it durable and long-lasting. The product has a maximum rating of 10A 250V and can handle a current range of 10~20A, making it suitable for use in various household appliances such as ovens, refrigerators, and air conditioners.
Some application occasions and scenarios for the JULUN Thermistor Temperature Sensor product include:
- Temperature control in household appliances such as ovens, refrigerators, and air conditioners
- Temperature control in industrial equipment such as heaters, boilers, and furnaces
- Temperature control in medical equipment such as incubators and sterilizers
- Temperature control in automotive applications such as engine cooling systems, air conditioning systems, and seat heaters
The JULUN Thermistor Temperature Sensor product is a versatile and reliable temperature control solution that can be used in various settings. Its certifications, quality, and efficiency make it a product worth considering for temperature control applications.
Customization:
Support and Services:
The Thermistor Temperature Sensor product technical support and services include:
- Assistance with product installation and setup
- Troubleshooting and diagnosis of product issues
- Repair and replacement services
- Product documentation and user manuals
- Product training and education
- Product customization and engineering support
