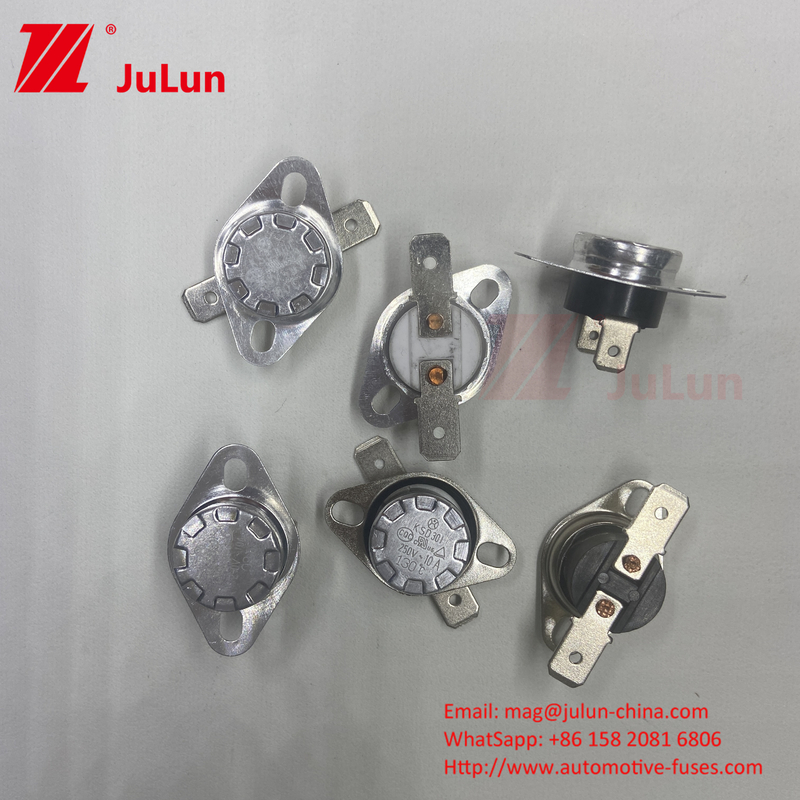

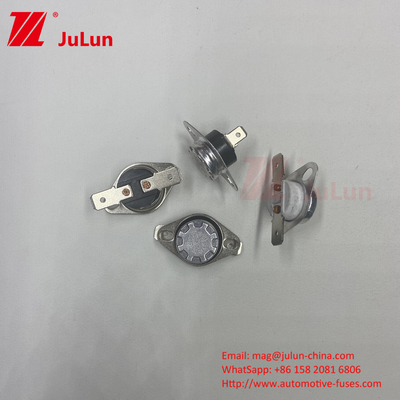

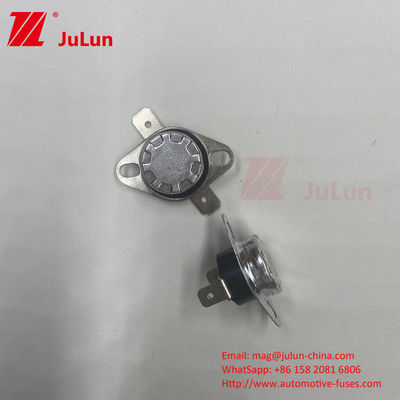

KSD301 KSD302 Insulation Resistance No Breakdown Blinding Normal State Jump Switch With ≥100000 Times Life Cycle
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Recovery And Action Temperature Difference: | 0 To 25 Degrees, Or According To Client's Request. | Life Cycle: | ≥100000 Times |
|---|---|---|---|
| ActionTemperature: | 0~250℃ | Terminal Type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Model Name: | KSD301 KSD302 | Insulation Resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| House: | Plastic Or Ceramic. | Two Kinds Of Mounting Bracket: | Movable Or Immovable |
| Highlight: | Insulation Resistance Jump Switch,KSD301 KSD302 Jump Switch,Normal State Jump Switch |
||
Product Description
Product Description:
This product is available in two mounting bracket options: movable or immovable. The movable bracket allows for easy installation and adjustment, while the immovable bracket provides a more secure and stable mounting option.
The Thermistor Temperature Sensor is available in two model names: KSD301 and KSD302. These models are designed to meet different temperature sensing requirements and are suitable for use in various applications such as hot water kettles, refrigerators, and air conditioners.
The product features two temperature sensor face options: aluminum cap and copper head. The aluminum cap is suitable for use in applications where a fast response time is required, while the copper head is ideal for applications that require a high-temperature range and excellent thermal conductivity.
The Thermistor Temperature Sensor comes with different housing materials: plastic or ceramic. The plastic housing is lightweight and provides good insulation, while the ceramic housing has excellent thermal stability and is suitable for use in high-temperature applications.
This product has two terminal type options: A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm, and B. Terminal Angle: Bending Angle: 0~90°C Optional. These options provide flexibility and ease of installation, making it easier to integrate the sensor into various applications.
The KSD301 model of the Thermistor Temperature Sensor is ideal for use in hot water kettles. It features a pin type terminal and is designed to provide accurate temperature sensing in this application. This model is popular among manufacturers of hot water kettles due to its reliability and accuracy.
Features:
- Product Name: Thermistor Temperature Sensor
- Two kinds of mounting bracket: Movable Or Immovable
- Contact type: Normally Closed Or Normally Open
- House: Plastic Or Ceramic
- Action Temperature: 0~250℃
- Recovery and action temperature difference: 0 To 25 Degrees, Or According To Client's Request
This temperature sensor can be used in various applications such as:
- incubator
- Household appliance
- Temperature control switch
Technical Parameters:
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Life cycle | ≥100000 Times |
| Temperature deviation | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Recovery and action temperature difference | 0 To 25 Degrees, Or According To Client's Request |
| House | Plastic Or Ceramic |
| Circuit resistance | ≤50mΩ (Initial Value) |
| Temperature sensor face | Aluminum Cap Or Copper Head |
| Two kinds of mounting bracket | Movable Or Immovable |
| Model name | KSD301 KSD302 |
| Terminal type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
Applications:
The JULUN Thermistor Temperature Sensor has a circuit resistance of ≤50mΩ (Initial Value) and two terminal types - A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional. It has a life cycle of ≥100000 times and a temperature deviation of ±3 / ±5 / ±10 Degree or according to client's request. The voltage and current rating is AC 125V Max 15A; AC250V 5A 10A 15A Max 16A.
The JULUN Thermistor Temperature Sensor is suitable for various product application occasions and scenarios. For example:
- Jump Switch: The product can be used in jump switches, where it can switch on or off the circuit as per the temperature requirement. The temperature deviation feature ensures that the switch is accurate and reliable.
- Threaded Brass: The product is also suitable for threaded brass applications, where it can regulate the temperature of the device. This can be useful in incubators, where the temperature needs to be precisely controlled for the growth and development of living organisms.
Overall, the JULUN Thermistor Temperature Sensor is a versatile and durable product that can meet various temperature control needs. It has been tested and certified for quality and safety, making it a reliable choice for different industries and applications.
Customization:
JULUN offers product customization services for the KSD301 KSD302 Bimetal Thermostat temperature sensor. Our products are made in China and have CE, UL, and CCC certifications. The minimum order quantity is 100 units with a price range of 0.7~1.5. The packaging details include a carton and delivery time is 1~2 weeks. Payment terms are T-T and supply ability is 1000K/times.
The temperature sensor face can be customized with an aluminum cap or copper head. Recovery and action temperature difference ranges from 0 To 25 Degrees or according to client's request. The voltage & current is AC 125V Max 15A; AC250V 5A 10A 15A Max 16A. The terminal type includes 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm and the terminal angle can be bent at 0~90°C. Temperature deviation ranges from ±3 / ±5 / ±10 Degree or according to the client's request.
Our temperature sensors are perfect for jump switch applications and can measure temperatures from 0~250°C. Contact us today to request a quote for your customized temperature sensor needs.
Support and Services:
Our Thermistor Temperature Sensor product technical support and services include:
- Assistance with product installation and setup
- Troubleshooting and diagnosis of product issues
- Product repair and maintenance services
- Product documentation and user manuals
- Product training and education resources
- Product customization and development services
