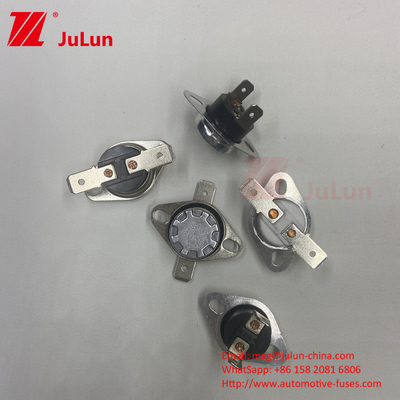

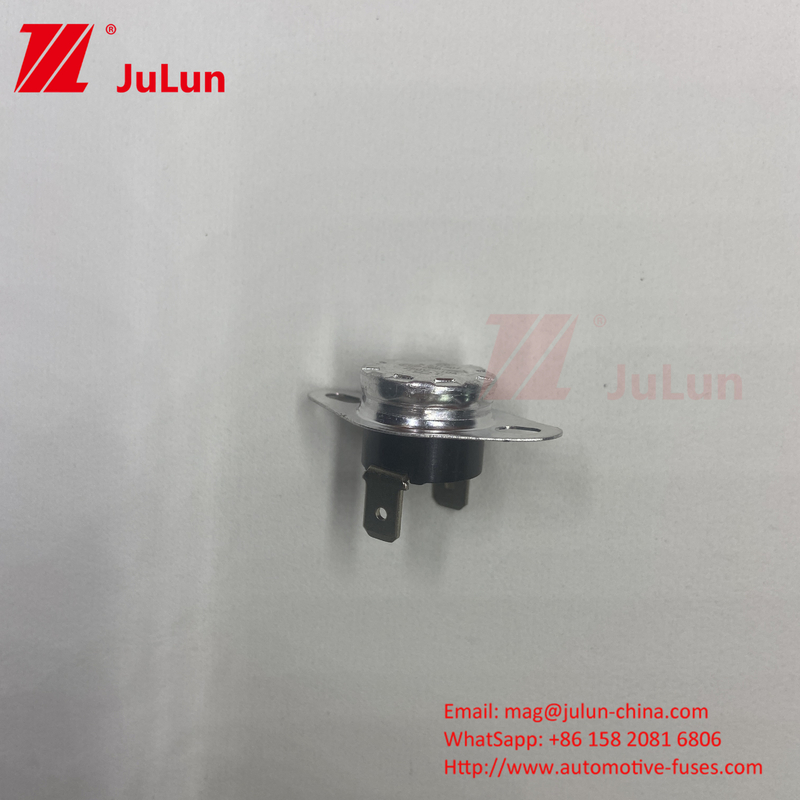

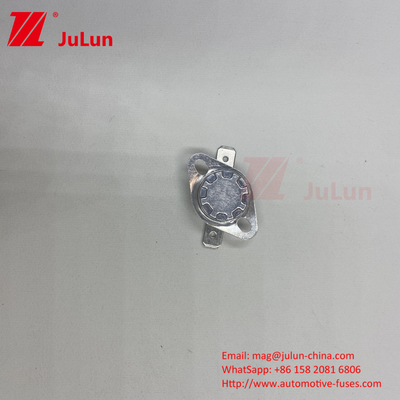

Switch H31 250V KSD301 10A 250V Disc Snap Action Thermostats, Low Temperature Limited Control Switch H31 250V 10 13C
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD301 10A 250V Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Contact Type: | Normally Closed Or Normally Open | Two Kinds Of Mounting Bracket: | Movable Or Immovable |
|---|---|---|---|
| Terminal Type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional | Life Cycle: | ≥100000 Times |
| Recovery And Action Temperature Difference: | 0 To 25 Degrees, Or According To Client's Request. | House: | Plastic Or Ceramic. |
| Temperature Sensor Face: | Aluminum Cap Or Copper Head. | ActionTemperature: | 0~250℃ |
| Highlight: | KSD301 Disc Snap Action Thermostats,Low Temperature Disc Snap Action Thermostats,250V Disc Snap Action Thermostats |
||
Product Description
Product Description:
The action temperature range for this temperature sensor is 0~250℃, allowing for accurate and reliable temperature measurements. This sensor is available in a plastic or ceramic housing, providing flexibility and durability in various settings.
The Thermistor Temperature Sensor has a long life cycle of ≥100000 times, ensuring reliable and consistent performance over time. Additionally, this sensor features an aluminum cap or copper head for temperature sensing, enabling accurate temperature readings even in harsh environments.
Overall, the Thermistor Temperature Sensor is a versatile and reliable tool for temperature measurement in a variety of settings, with a voltage and current rating of up to 10A 250V. Whether you need to measure temperature in a hot water kettle or an incubator, this sensor is sure to provide accurate and consistent data.
Features:
- Product Name: Thermistor Temperature Sensor
- Action Temperature: 0~250℃
- Terminal Type:
- A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm
- B. Terminal Angle: Bending Angle: 0~90°C Optional
- Insulation Resistance: AC50Hz 1500V / Min, No Breakdown Blinding (Normal State)
- Temperature Deviation: ±3 / ±5 / ±10 Degree Or According To Client's Request
- House: Plastic Or Ceramic
- Features:
- Temperature control switch
- Metal expansion type
- Temperature controller
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Contact type | Normally Closed Or Normally Open |
| House | Plastic Or Ceramic |
| Terminal type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Action Temperature | 0~250℃ |
| Insulation resistance | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Temperature sensor face | Aluminum Cap Or Copper Head |
| Life cycle | ≥100000 Times |
| Mounting bracket | Two kinds: Movable Or Immovable |
| Circuit resistance | ≤50mΩ (Initial Value) |
This table represents the technical parameters for the KSD301 Temperature control switch, which is a Thermistor Temperature Sensor product.
Applications:
The JULUN KSD Bimetal Thermostat is a versatile temperature control switch suitable for a wide range of applications. Its compact size and pin-type mounting make it easy to install in a variety of equipment and machinery.
With a temperature deviation of ±3 / ±5 / ±10 Degree or according to client's request, the KSD Bimetal Thermostat is highly accurate and reliable, ensuring precise temperature control in a variety of scenarios.
The KSD Bimetal Thermostat is manufactured in China and is certified to meet CE, UL, and CCC standards, making it a reliable and safe choice for a range of applications.
The KSD Bimetal Thermostat has a minimum order quantity of 100 and is priced between 0.7~1.5 USD, depending on the specific model and temperature deviation required. It is packaged in cartons and has a delivery time of 1~2 weeks, with payment terms of T-T. The KSD Bimetal Thermostat has a supply ability of 1000K/times.
The KSD Bimetal Thermostat comes with two kinds of mounting bracket, movable or immovable, and is suitable for use in a range of scenarios, including:
- Industrial machinery
- Food processing equipment
- Heating and cooling systems
- Automotive applications
- Medical equipment
The KSD Bimetal Thermostat has a temperature sensor face of aluminum cap or copper head, depending on the specific model. It has an action temperature range of 0~250℃, making it suitable for a range of high-temperature applications. The KSD Bimetal Thermostat is also available with voltage and current ratings of AC 125V Max 15A; AC250V 5A 10A 15A Max 16A.
In summary, the JULUN KSD Bimetal Thermostat is a versatile and reliable temperature control switch suitable for a range of applications. With its compact size, pin-type mounting, and accurate temperature control, it is a popular choice for industrial machinery, food processing equipment, heating and cooling systems, automotive applications, and medical equipment.
Whether you need a movable or immovable mounting bracket, or a specific temperature deviation, the KSD Bimetal Thermostat can be customized to meet your specific needs. Contact us today to learn more about the JULUN KSD Bimetal Thermostat and how it can benefit your business.
Keywords: Temperature control switch, Pin type, M6
Customization:
JULUN offers product customization services for the KSD Bimetal Thermostat Thermistor Temperature Sensor. This product is made in China and has a certification of CE UL CCC. The minimum order quantity is 100 units and the price range is from 0.7 to 1.5 per unit. The packaging details are in a carton and delivery time is within 1 to 2 weeks. Payment terms are T-T and the supply ability is 1000K per time. The life cycle of this product is at least 100,000 times. The action temperature range is 0~250℃. The terminal type options include 187 series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm, and terminal angle bending angle from 0~90°C. The voltage and current ratings are AC 125V max 15A and AC250V 5A 10A 15A max 16A. The contact type options are normally closed or normally open.
With our product customization services, we can tailor the KSD Bimetal Thermostat Thermistor Temperature Sensor to meet your specific needs. For example, we can customize the action temperature to be within the range of 0~250°C, making it suitable for use in hot water kettles. We can also customize the terminal type to be M6 to fit your specific application.
Support and Services:
The Thermistor Temperature Sensor product comes with the following technical support and services:
- 24/7 online technical support
- Product documentation including user manuals and data sheets
- Troubleshooting guides
- Repair and maintenance services
- Calibration services
- Technical consultation services
For more information on these services, please refer to the product documentation or contact our customer support team.
Packing and Shipping:
Product Packaging:
- The Thermistor Temperature Sensor will be packed in a sturdy cardboard box to ensure safe delivery.
- The box will be labeled with the product name, quantity, and any other relevant information.
- Inside the box, the sensor will be wrapped in bubble wrap to prevent any damage during transit.
- Accompanying the sensor will be an instruction manual to help customers with installation and use.
Shipping:
- The Thermistor Temperature Sensor will be shipped via a reputable courier service.
- Customers can choose their preferred shipping speed at checkout.
- The sensor will be shipped within 1-2 business days of receiving the order.
- Customers will receive a tracking number to monitor the progress of their delivery.
- We ship internationally, but customers may be responsible for any customs or import duties.
FAQ:
Q: What is the brand name of the Thermistor Temperature Sensor?
A: The brand name of the Thermistor Temperature Sensor is JULUN.
Q: What is the model number of the Thermistor Temperature Sensor?
A: The model number of the Thermistor Temperature Sensor is KSD Bimetal Thermostat.
Q: Where is the Thermistor Temperature Sensor made?
A: The Thermistor Temperature Sensor is made in China.
Q: What certifications does the Thermistor Temperature Sensor have?
A: The Thermistor Temperature Sensor is certified by CE, UL, and CCC.
Q: What is the minimum order quantity for the Thermistor Temperature Sensor?
A: The minimum order quantity for the Thermistor Temperature Sensor is 100.
Q: What is the price range of the Thermistor Temperature Sensor?
A: The price range of the Thermistor Temperature Sensor is between 0.7 to 1.5.
Q: What are the packaging details for the Thermistor Temperature Sensor?
A: The packaging details for the Thermistor Temperature Sensor are in cartons.
Q: How long is the delivery time for the Thermistor Temperature Sensor?
A: The delivery time for the Thermistor Temperature Sensor is 1 to 2 weeks.
Q: What are the payment terms for the Thermistor Temperature Sensor?
A: The payment terms for the Thermistor Temperature Sensor are T-T.
Q: What is the supply ability for the Thermistor Temperature Sensor?
A: The supply ability for the Thermistor Temperature Sensor is 1000K per order.
