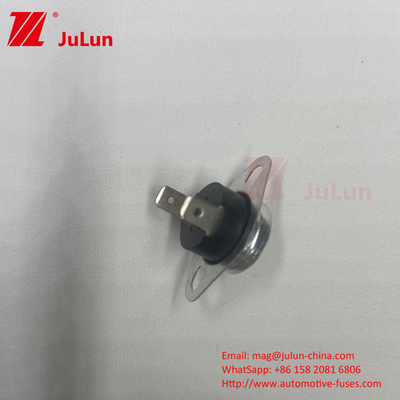

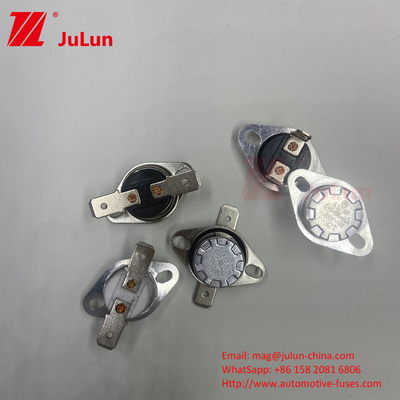

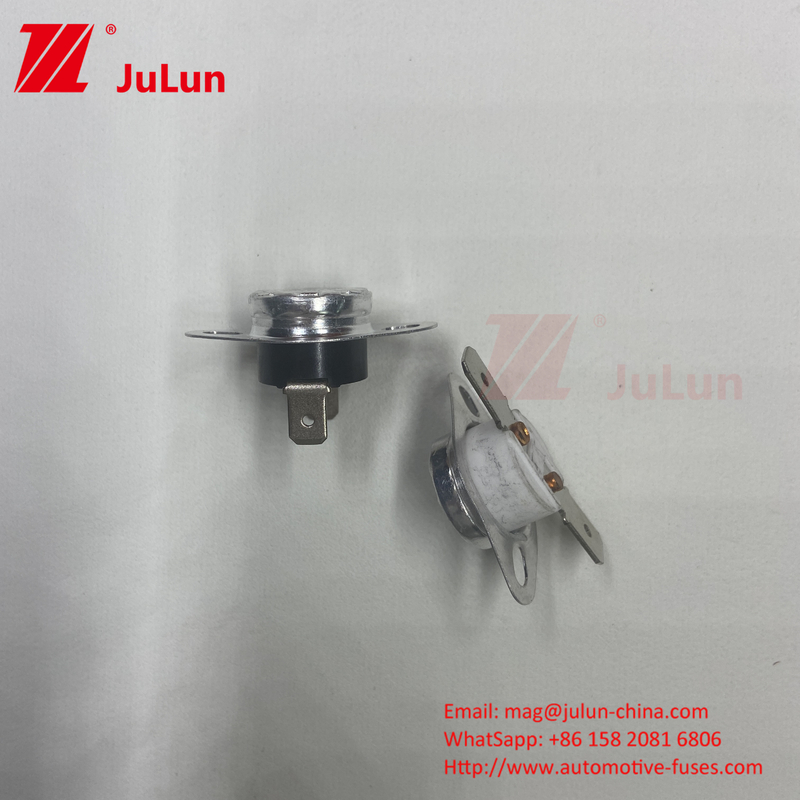

KSD301 Thermistor Temperature Sensor Normally Open Contact Type 10A 250V Circuit Resistance≤50mΩ Product
Product Details:
| Place of Origin: | China |
| Brand Name: | JULUN |
| Certification: | CE UL CCC |
| Model Number: | KSD Bimetal Thermostat |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
Detail Information |
|||
| Temperature Sensor Face: | Aluminum Cap Or Copper Head. | Terminal Type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
|---|---|---|---|
| Circuit Resistance: | ≤50mΩ (Initial Value) | Contact Type: | Normally Closed Or Normally Open |
| ActionTemperature: | 0~250℃ | Recovery And Action Temperature Difference: | 0 To 25 Degrees, Or According To Client's Request. |
| Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A | Insulation Resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Highlight: | 10A thermistor temperature sensor,250V thermistor temperature sensor,Open thermistor temperature sensor |
||
Product Description
Product Description:
The Thermistor Temperature Sensor has an action temperature range of 0~250℃, which makes it ideal for use in temperature-critical applications where accuracy and precision are important. The product has a long life cycle of ≥100000 times, which ensures that it can withstand continuous use without deteriorating quickly.
In terms of insulation resistance, the Thermistor Temperature Sensor is designed to provide AC50Hz 1500V / Min, No Breakdown Blinding (Normal State). This ensures that the product can operate efficiently and safely without any risk of electrical shock or damage. Additionally, the circuit resistance of the product is ≤50mΩ (Initial Value) which ensures that the product is accurate and reliable in its temperature readings.
The Thermistor Temperature Sensor is also designed to be easy to install and use. The product comes with an M6 thread, which makes it easy to mount and secure in place. Additionally, the product has a maximum rating of 10A 250V, which ensures that it can handle a wide range of temperature variations without any risk of damage to the product.
Overall, the Thermistor Temperature Sensor is a reliable and durable product that is ideal for use in various industrial and commercial settings. With its high accuracy, easy installation, and long life cycle, this temperature sensor is perfect for monitoring and measuring temperature variations in a wide range of applications.
Features:
- Product Name: Thermistor Temperature Sensor
- Temperature sensor face: Aluminum Cap Or Copper Head
- Life cycle: ≥100000 Times
- ActionTemperature: 0~250℃
- Contact type: Normally Closed Or Normally Open
- Recovery and action temperature difference: 0 To 25 Degrees, Or According To Client's Request
- Max Current: 10A
- Max Voltage: 250V
- Application: Hot Water Kettle
Technical Parameters:
| Temperature sensor face | Aluminum Cap or Copper Head |
| Action temperature | 0~250℃ |
| House | Plastic or Ceramic |
| Life cycle | ≥100000 times |
| Contact type | Normally Closed or Normally Open |
| Recovery and action temperature difference | 0 to 25 degrees, or according to client's request |
| Voltage & Current | AC 125V max 15A; AC250V 5A 10A 15A max 16A |
| Insulation resistance | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Terminal type | A. Terminal Type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Temperature deviation | ±3 / ±5 / ±10 Degree or according to client's request |
Threaded brass, Household appliance, Threaded brass
Applications:
This temperature sensor is designed to be used in a variety of different settings. It is commonly used in HVAC systems, where it can be used to monitor the temperature of air flowing through ducts and vents. The sensor can also be used in industrial settings, where it can be used to monitor the temperature of equipment and machinery. It is also commonly used in home appliances like ovens, microwaves, and refrigerators, where it can help ensure that food is cooked or stored at the correct temperature.
The JULUN KSD Bimetal Thermostat is designed to be easy to install and use. It features a jump switch that allows you to easily turn the sensor on or off as needed. The sensor has a temperature range of 0~250°C, making it suitable for use in a wide range of environments. It is also hexagonal in shape, which makes it easy to mount and install in a variety of different settings.
This temperature sensor is manufactured in China and is certified by CE, UL, and CCC. It has a minimum order quantity of 100 and a price range of 0.7~1.5. It comes packaged in a carton and has a delivery time of 1~2 weeks. Payment terms are T-T and the supply ability is 1000K/times. The sensor has a plastic or ceramic house and a life cycle of ≥100000 times. It also has a circuit resistance of ≤50mΩ (Initial Value) and can be configured as normally closed or normally open.
Customization:
The temperature sensor face can be either an aluminum cap or copper head, and the contact type is either normally closed or normally open. The temperature deviation can be ±3 / ±5 / ±10 degree or according to the client's request. The insulation resistance is AC50Hz 1500V/min, with no breakdown blinding in the normal state.
The terminal type offers two options: 187 series of 4.8*0.5mm and 4.8*0.8mm, and 250 series of 6.3*0.8mm. The terminal angle can be bent at 0~90°C, and the product has jump switch and pin type options. It has a current rating of 10~20A.
Contact us today to learn more about our Thermistor Temperature Sensor customization services.
Support and Services:
The Thermistor Temperature Sensor product technical support and services offered include:
- Assistance with product installation and setup
- Troubleshooting and diagnosis of product issues
- Repair and maintenance services
- Technical consultation and guidance on product usage and optimization
- Provision of product documentation and user manuals
- Warranty and guarantee support
Packing and Shipping:
Product Packaging:
- Thermistor Temperature Sensor
- Instruction Manual
- Protective Plastic Case
Shipping:
- Shipped via standard ground shipping
- Tracking number provided
- Expected delivery time: 3-5 business days
FAQ:
A: The brand name of the Thermistor Temperature Sensor is JULUN.
2. Q: What is the model number of the Thermistor Temperature Sensor?A: The model number of the Thermistor Temperature Sensor is KSD Bimetal Thermostat.
3. Q: Where is the Thermistor Temperature Sensor manufactured?A: The Thermistor Temperature Sensor is manufactured in China.
4. Q: Is the Thermistor Temperature Sensor certified?A: Yes, the Thermistor Temperature Sensor is certified with CE, UL, and CCC.
5. Q: What is the minimum order quantity for the Thermistor Temperature Sensor?A: The minimum order quantity for the Thermistor Temperature Sensor is 100.
6. Q: What is the price range of the Thermistor Temperature Sensor?A: The price range of the Thermistor Temperature Sensor is between 0.7~1.5.
7. Q: What are the packaging details for the Thermistor Temperature Sensor?A: The packaging details for the Thermistor Temperature Sensor is carton.
8. Q: What is the delivery time for the Thermistor Temperature Sensor?A: The delivery time for the Thermistor Temperature Sensor is 1~2 weeks.
9. Q: What are the payment terms for the Thermistor Temperature Sensor?A: The payment terms for the Thermistor Temperature Sensor is T-T.
10. Q: What is the supply ability of the Thermistor Temperature Sensor?A: The supply ability of the Thermistor Temperature Sensor is 1000K/times.
