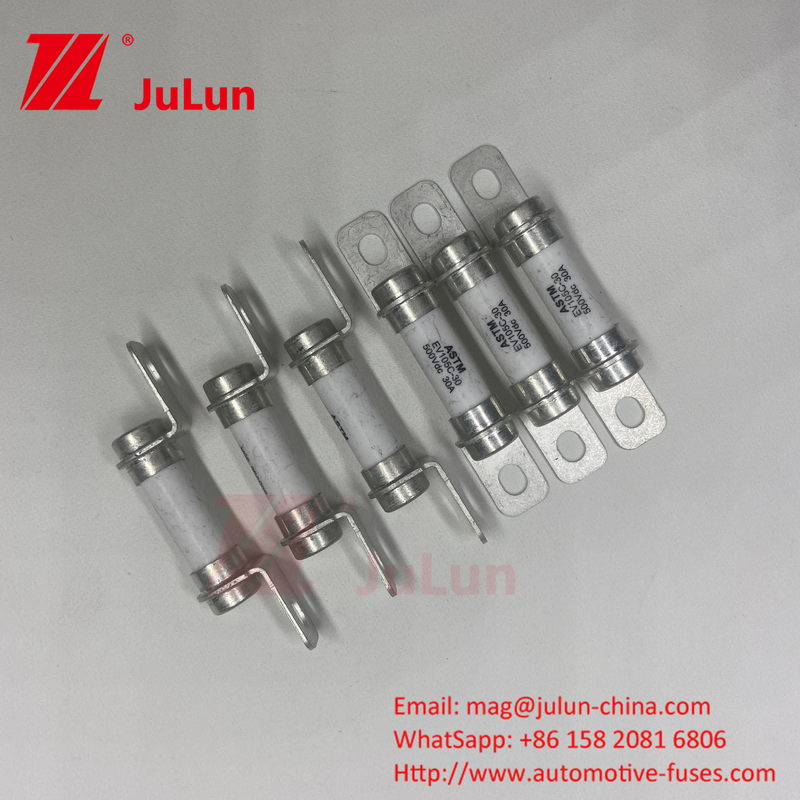

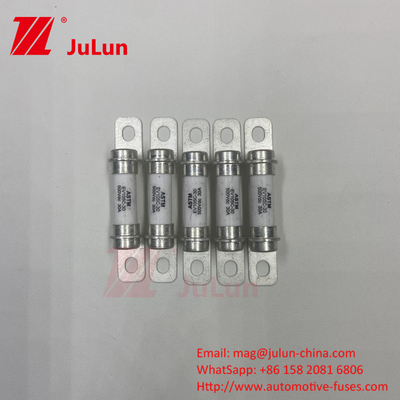

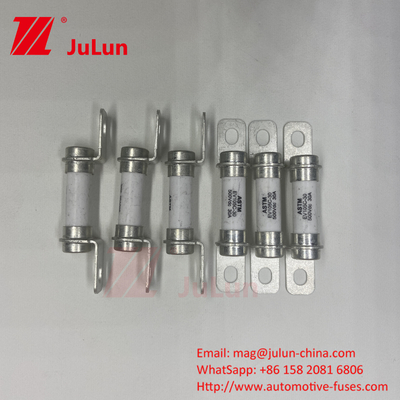

Fuse Electric Vehicle Charger 30A15A 500VDC Battery Energy Storage System Fuse
Product Details:
| Place of Origin: | China |
| Brand Name: | ASTM |
| Certification: | CE UL CCC |
| Model Number: | EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 4~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| EV Fuse Standard: | UL248-20 ISO8820-8&GB/T31465.6 | Temperature Control Range: | -45-125°C |
|---|---|---|---|
| Specifically Designed For: | Automobile Application. With Excellent Resistant To Vibration, Mechanical Shock, Chemical Load And High Temperature, | Packing Method: | Boxed |
| Use For To: | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. | Installation Mode: | M6 Bolt Type |
| Scope Of Application: | Automobile Application | Construction: | Bolted M6 |
| Highlight: | 30A 15A Electric Vehicle Charger Fuse,500VDC Electric Vehicle Charger Fuse |
||
Product Description
Product Description:
The Electric Vehicle Fuse product is available in various rated current options to suit your specific needs. You can choose from 5A, 10A, 15A, 20A, 30A, 40A, and 50A fuses. Our fuses are designed to handle the current load of your charging system accurately and safely.
Our Electric Vehicle Fuse product features a bolted M6 construction that ensures a secure and safe connection. This construction provides reliable protection against short circuits and overloading.
The Electric Vehicle Fuse product is designed to operate in a wide temperature range. It can work efficiently in temperatures ranging from -45°C to 125°C. This feature makes our fuses ideal for extreme weather conditions. Whether you're using a CCS EV Charger, 7KW Charger, or home ev charger for Electric Car, our fuses will provide reliable protection for your charging system.
Our Electric Vehicle Fuse product has a high breaking capacity of 20KA, which makes it highly effective in protecting your electric vehicle charging system from overloading and short circuits. This feature ensures that your charging system remains safe and reliable at all times.
The Electric Vehicle Fuse product is rated for DC500V, which makes it suitable for use in a wide range of electric vehicles. Our fuses are designed to provide reliable protection for your vehicle's charging system, ensuring that it remains safe and efficient.
In summary, our Electric Vehicle Fuse product is a reliable and safe option for protecting your electric vehicle charging system. With its bolted M6 construction, wide temperature control range, high breaking capacity, and DC500V rating, our fuses are designed to provide reliable protection for your charging system. Whether you're using a CCS EV Charger, 7KW Charger, or home ev charger for Electric Car, our fuses will ensure that your charging system remains safe and reliable.
Features:
- Product Name: Electric Vehicle Fuse
- EV fuse standard: UL248-20, ISO8820-8&GB/T31465.6
- Breaking Capacity: 20KA
- Temperature control range: -45-125°C
- Rated current: 5A, 10A, 15A, 20A, 30A, 40A, 50A
- Construction: Bolted M6
Designed for use in electric vehicles with a breaking capacity of 20KA and temperature control range of -45-125°C, the Electric Vehicle Fuse is compatible with a range of automotive battery chargers and Electric Vehicle Fast Charging systems. It meets the UL248-20, ISO8820-8&GB/T31465.6 standards and is available in a variety of rated current options (5A, 10A, 15A, 20A, 30A, 40A, and 50A) to suit your needs. The bolted M6 construction ensures a secure fit. Compatible with CCS EV Charger systems.
Technical Parameters:
| Rated current: | 5A 10A 15A 20A 30A 40A 50A |
| Rated Voltage: | DC500V |
| Scope of application: | Automobile Application |
| Construction: | Bolted M6 |
| Installation mode: | M6 Bolt Type |
| Outer pipe material: | Ceramic Copper, Silver, Gold, Quartz Sand |
| EV fuse standard: | UL248-20 ISO8820-8&GB/T31465.6 |
| Breaking Capacity: | 20KA |
| Temperature control range: | -45-125°C |
| Specifically designed for: | Automobile Application. With Excellent Resistant To Vibration, Mechanical Shock, Chemical Load And High Temperature, Electric Vehicle Fast Charging, 22KW Charger |
Applications:
ASTM EV105C DC Fuses for pure electric vehicles, hybrid vehicles battery energy storage systems are specifically designed for automobile applications. The fuses come in a range of rated currents including 5A, 10A, 15A, 20A, 30A, 40A and 50A, with a breaking capacity of 20KA. The outer pipe material of the fuses is made from Ceramic Copper, Silver, Gold, Quartz Sand, which makes them highly resistant to vibration, mechanical shock, chemical load and high temperature.
These fuses are a critical safety component of pure electric vehicles, hybrid vehicles and battery energy storage systems. They protect the vehicles' battery systems from overloading and short circuits, which can cause fires or other dangerous situations.
The ASTM EV105C DC Fuses are CE, UL, and CCC certified, ensuring their high quality and reliability. The minimum order quantity for these fuses is 100 pieces, and they are sold at a price range of 1.5~2.8USD. The fuses come packaged in cartons and have a delivery time of 1-2 weeks. Payment terms are T-T and the supply ability is 1000K/PCS.
These fuses are suitable for a range of product application occasions and scenarios, including:
- Automotive battery charger: The ASTM EV105C DC Fuses can be used in automotive battery chargers to protect the battery from overloading and short circuits.
- AC Ev Charger Adapter Compatible: These fuses can be used in AC EV charger adapters to protect the vehicle's battery from overloading and short circuits.
- Portable EV charger: The ASTM EV105C DC Fuses can be used in portable EV chargers to protect the battery from overloading and short circuits.
The ASTM EV105C DC Fuses are made in China and are of high quality and reliability. They are an essential component of pure electric vehicles, hybrid vehicles and battery energy storage systems, ensuring safety and protecting the battery from damage.
Customization:
Support and Services:
The Electric Vehicle Fuse product technical support and services include:
- Assistance with installation and usage of the fuse
- Troubleshooting and diagnosis of any issues related to the fuse
- Warranty and repair services for defective fuses
- Information and guidance on proper maintenance and care of the fuse
- Training and education on the features and benefits of the fuse
Packing and Shipping:
Product Packaging:
- Electric Vehicle Fuse product
- Protective packaging material
- Product manual and instructions
Shipping:
- Shipping carrier: UPS
- Delivery time: 3-5 business days
- Shipping cost: Free
- Tracking number provided
FAQ:
Q: What is the brand name of the Electric Vehicle Fuse?
A: The brand name of the Electric Vehicle Fuse is ASTM.
Q: What is the model number of the Electric Vehicle Fuse?
A: The model number of the Electric Vehicle Fuse is EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems.
Q: Where is the Electric Vehicle Fuse manufactured?
A: The Electric Vehicle Fuse is manufactured in China.
Q: What certifications does the Electric Vehicle Fuse have?
A: The Electric Vehicle Fuse has CE UL CCC certifications.
Q: What is the minimum order quantity of the Electric Vehicle Fuse?
A: The minimum order quantity of the Electric Vehicle Fuse is 100.
Q: What is the price range of the Electric Vehicle Fuse?
A: The price range of the Electric Vehicle Fuse is 1.5~2.8USD.
Q: What are the packaging details of the Electric Vehicle Fuse?
A: The packaging details of the Electric Vehicle Fuse is carton.
Q: What is the delivery time of the Electric Vehicle Fuse?
A: The delivery time of the Electric Vehicle Fuse is 1-2 weeks.
Q: What are the payment terms for the Electric Vehicle Fuse?
A: The payment terms for the Electric Vehicle Fuse are T-T.
Q: What is the supply ability of the Electric Vehicle Fuse?
A: The supply ability of the Electric Vehicle Fuse is 1000K/PCS.
