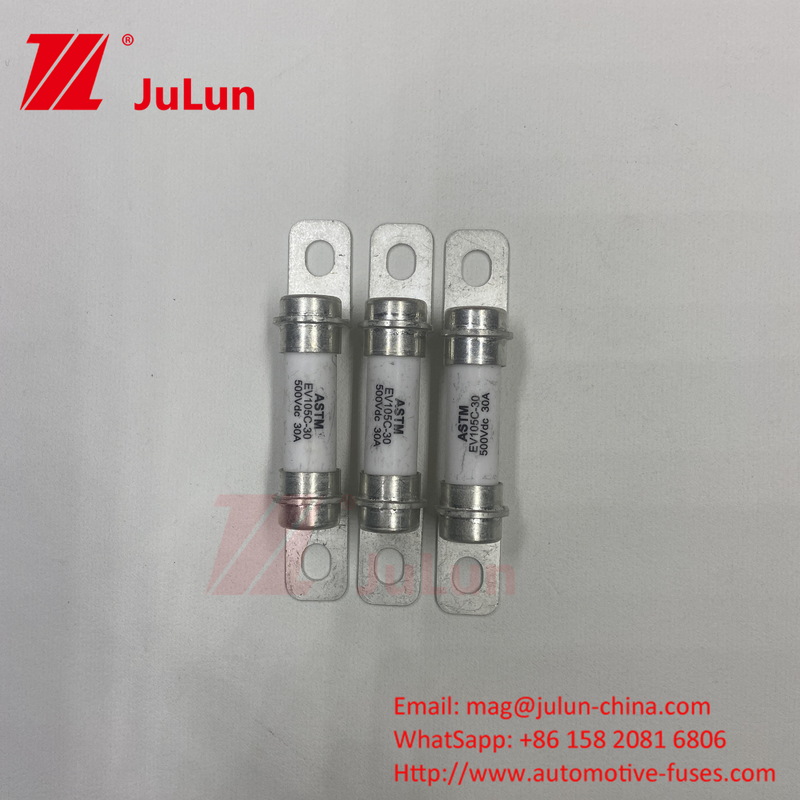

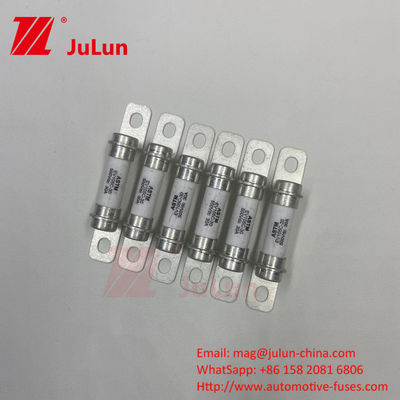

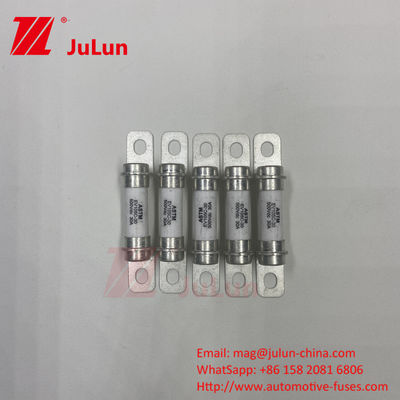

M6 Bolt Fuse For EV Electric Vehicle 500VDCHEV 500VDC 15A 30A 40A Energy Storage System Fuse
Product Details:
| Place of Origin: | China |
| Brand Name: | ASTM |
| Certification: | CE UL CCC |
| Model Number: | EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 4~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| Installation Mode: | M6 Bolt Type | Rated Voltage: | DC500V |
|---|---|---|---|
| Temperature Control Range: | -45-125°C | EV Fuse Standard: | UL248-20 ISO8820-8&GB/T31465.6 |
| Breaking Capacity: | 20KA | Use For To: | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Scope Of Application: | Automobile Application | Rated Current: | 5A 10A 15A 20A 30A 40A 50A |
| Highlight: | 15A M6 Bolt Fuse,30A M6 Bolt Fuse,500VDCHEV M6 Bolt Fuse |
||
Product Description
Product Description:
The construction of this fuse is bolted M6, which provides excellent resistance to vibration, mechanical shock, chemical load, and high temperature. This makes it a reliable and durable choice for any electric vehicle. The rated voltage of this fuse is DC500V, ensuring that it can withstand the high voltage demands of an electric vehicle.
The Electric Vehicle Fuse conforms to the UL248-20, ISO8820-8, and GB/T31465.6 standards. This means that it has been tested and approved to meet the highest safety standards for electric vehicles.
Whether you are using a home EV charger for your electric car or an electric vehicle fast charging 22KW charger, the Electric Vehicle Fuse is an essential component in ensuring the safety and reliability of your vehicle.
Features:
- Product Name: Electric Vehicle Fuse
- Use for: EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc.
- Construction: Bolted M6
- EV fuse standard: UL248-20 ISO8820-8&GB/T31465.6
- Rated Voltage: DC500V
- Scope of Application: Automobile Application
- Compatible with Electric Vehicle Fast Charging
- Designed for DC Electric Car Charging
- Can be used with 7KW Charger
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Rated Current | 5A, 10A, 15A, 20A, 30A, 40A, 50A |
| Packing Method | Boxed |
| Specifically Designed for | Automobile Application. With Excellent Resistant To Vibration, Mechanical Shock, Chemical Load And High Temperature |
| Rated Voltage | DC500V |
| Scope of Application | Automobile Application, home ev charger For Electric Car, 22KW Charger |
| EV Fuse Standard | UL248-20 ISO8820-8&GB/T31465.6 |
| Breaking Capacity | 20KA |
| Outer Pipe Material | Ceramic Copper, Silver, Gold, Quartz Sand |
| Construction | Bolted M6 |
| Temperature Control Range | -45-125°C |
Applications:
ASTM's EV105C DC fuses are made with excellent resistance to vibration, mechanical shock, chemical load, and high temperature. The breaking capacity of these fuses is 20KA and the construction is bolted M6. The outer pipe material used for these fuses is ceramic copper, silver, gold, and quartz sand.
These fuses are a perfect fit for CCS EV chargers, EV DC fast chargers, and Electric Vehicle Fast Charging. If you are looking for a reliable and high-quality fuse for your automobile applications, ASTM's EV105C DC fuses are the perfect fit.
Customization:
Brand Name: ASTM
Model Number: EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems
Place of Origin: China
Certification: CE UL CCC
Minimum Order Quantity: 100
Price: 1.5~2.8USD
Packaging Details: Carton
Delivery Time: 1-2weeks
Payment Terms: T-T
Supply Ability: 1000K/PCS
Outer pipe material: Ceramic Copper, Silver, Gold, Quartz Sand
Scope of application: Automobile Application
Rated Voltage: DC500V
Breaking Capacity: 20KA
Installation mode: M6 Bolt Type
Product Customization Services:
- Custom branding available for orders over 500 units.
- Can be bundled with our 7KW Charger for a complete charging solution for electric vehicles.
- Portable EV charger also available for on-the-go charging needs.
- DC Electric Car Charging customization available for commercial and fleet applications.
Support and Services:
The Electric Vehicle Fuse product technical support and services include:
- Expert technical support for installation and maintenance
- Product training and education
- Assistance with product selection and customization
- Repair and replacement services
- Product warranty support
- 24/7 customer service hotline
Packing and Shipping:
Product Packaging:
The Electric Vehicle Fuse product will be packaged securely in a cardboard box to protect it from any damage during shipping. The box will be labeled with the product name, description, and handling instructions for the carrier to ensure proper care during shipping. Inside the box, the product will be wrapped in bubble wrap and placed in a plastic bag to prevent any scratches or scuffs.
Shipping:
The Electric Vehicle Fuse product will be shipped via standard ground shipping within the United States. The estimated delivery time is 3-5 business days. International shipping is not currently available for this product.
FAQ:
Q: What is the brand name of this Electric Vehicle Fuse?
A: The brand name of this Electric Vehicle Fuse is ASTM.
Q: What is the model number of this Electric Vehicle Fuse?
A: The model number of this Electric Vehicle Fuse is EV105C.
Q: What is the place of origin of this Electric Vehicle Fuse?
A: The place of origin of this Electric Vehicle Fuse is China.
Q: What certifications does this Electric Vehicle Fuse have?
A: This Electric Vehicle Fuse has CE, UL, and CCC certifications.
Q: What is the minimum order quantity of this Electric Vehicle Fuse?
A: The minimum order quantity of this Electric Vehicle Fuse is 100.
Q: What is the price range of this Electric Vehicle Fuse?
A: The price of this Electric Vehicle Fuse ranges from 1.5 to 2.8 USD.
Q: What are the packaging details of this Electric Vehicle Fuse?
A: The packaging details of this Electric Vehicle Fuse are carton.
Q: What is the expected delivery time of this Electric Vehicle Fuse?
A: The expected delivery time of this Electric Vehicle Fuse is 1-2 weeks.
Q: What are the payment terms for this Electric Vehicle Fuse?
A: The payment terms for this Electric Vehicle Fuse are T-T.
Q: What is the supply ability of this Electric Vehicle Fuse?
A: The supply ability of this Electric Vehicle Fuse is 1000K/PCS.
