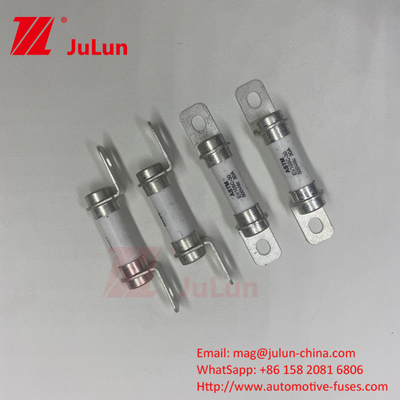

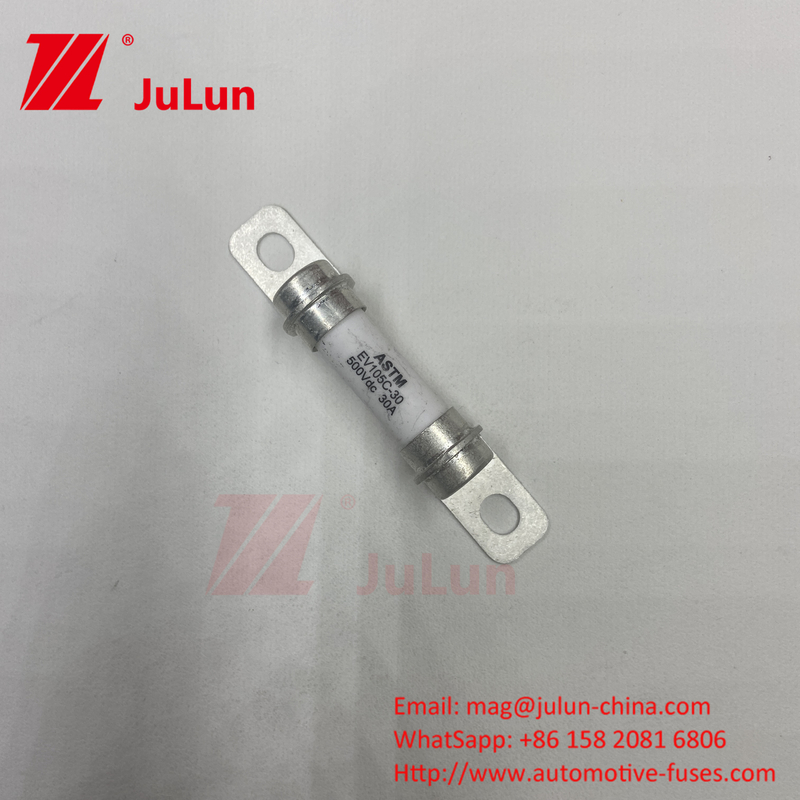

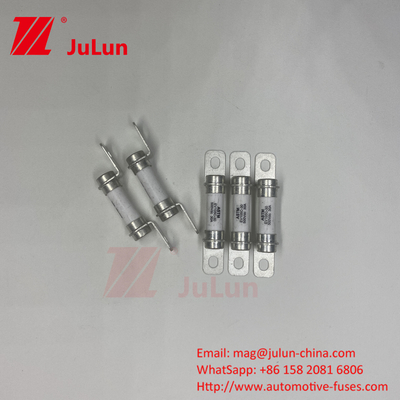

5A 10A15A 20A 30A Hybrid Car Fuse 20A 30A 40A Energy Storage System Electric Drive 500VDC
Product Details:
| Place of Origin: | China |
| Brand Name: | ASTM FUSE |
| Certification: | CE UL CCC |
| Model Number: | EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | 4~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Detail Information |
|||
| EV Fuse Standard: | UL248-20 ISO8820-8&GB/T31465.6 | Breaking Capacity: | 20KA |
|---|---|---|---|
| Specifically Designed For: | Automobile Application. With Excellent Resistant To Vibration, Mechanical Shock, Chemical Load And High Temperature, | Use For To: | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Installation Mode: | M6 Bolt Type | Construction: | Bolted M6 |
| Temperature Control Range: | -45-125°C | Rated Voltage: | DC500V |
| Highlight: | Electric Drive Hybrid Car Fuse,500VDC Hybrid Car Fuse |
||
Product Description
Product Description:
With a breaking capacity of 20KA, this fuse can handle a large amount of current and protect the electrical system from overloading. It is essential to have a fuse with this level of protection to ensure the safe operation of your electric vehicle.
The Electric Vehicle Fuse has a temperature control range of -45-125°C, which means it can operate in a wide range of temperatures without compromising its performance. This feature makes it perfect for use in different environments, including extreme temperature conditions.
The installation mode of this fuse is the M6 Bolt Type, which is easy to install and remove. This feature ensures that the fuse is securely installed and can be easily replaced when needed.
Whether you're using an automotive battery charger, a 7KW Charger, or a home EV charger for your electric car, this fuse will provide reliable protection against electrical faults and overloads. It is a must-have for anyone looking to ensure the safety and reliability of their electric vehicle's electrical system.
Features:
- Product Name: Electric Vehicle Fuse
- Use for: EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc.
- Rated current: 5A 10A 15A 20A 30A 40A 50A
- Outer pipe material: Ceramic Copper, Silver, Gold, Quartz Sand
- Breaking Capacity: 20KA
- Temperature control range: -45-125°C
- Compatible with Automotive battery charger
- Compatible with portable EV charger
- Can be used in Automotive battery charger
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Rated Current | 5A, 10A, 15A, 20A, 30A, 40A, 50A |
| Rated Voltage | DC500V |
| Breaking Capacity | 20KA |
| Installation Mode | M6 Bolt Type |
| EV Fuse Standard | UL248-20 ISO8820-8&GB/T31465.6 |
| Outer Pipe Material | Ceramic Copper, Silver, Gold, Quartz Sand |
| Construction | Bolted M6 |
| Use for | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Temperature Control Range | -45-125°C |
| Packing Method | Boxed |
Applications:
The ASTM FUSE EV105C is an M6 Bolt type fuse that is rated for 5A, 10A, 15A, 20A, 30A, 40A, and 50A. It is compliant with the UL248-20 ISO8820-8&GB/T31465.6 EV fuse standard. This product is built with excellent resistance to vibration, mechanical shock, chemical load, and high temperature.
The ASTM FUSE EV105C is the perfect product for Electric Vehicle Fast Charging, portable EV charger, and home ev charger for electric car. With its superior design and quality, it can ensure the safety and reliability of your electric vehicle.
Whether you have a pure electric vehicle, hybrid vehicle, or battery energy storage systems, the ASTM FUSE EV105C is the ideal fuse for your automobile application needs. So, don't wait and order yours today!
Customization:
Brand Name: ASTM FUSE
Model Number: EV105C Dc fuses for pure electric vehicles, hybrid vehicles battery energy storage systems
Place of Origin: China
Certification: CE UL CCC
Minimum Order Quantity: 100
Price: 1.5~2.8USD
Packaging Details: Carton
Delivery Time: 1-2weeks
Payment Terms: T-T
Supply Ability: 1000K/PCS
Breaking Capacity: 20KA
Scope of application: Automobile Application, home ev charger For Electric Car, DC Electric Car Charging
EV fuse standard: UL248-20 ISO8820-8&GB/T31465.6
Temperature control range: -45-125°C
Rated Voltage: DC500V
Support and Services:
The Electric Vehicle Fuse product technical support and services include:
- Assistance with fuse selection and application
- Technical support for installation and troubleshooting
- Product documentation and literature
- Training and educational resources
- Warranty and repair services
Packing and Shipping:
Product Packaging:
Each electric vehicle fuse is packed individually in a plastic pouch to prevent any damage during transportation. These pouches are then packed in a sturdy cardboard box with proper cushioning to ensure safe delivery.
Shipping:
We offer free shipping within the United States. The product is shipped within 1-2 business days of receiving the order. The estimated delivery time is 3-5 business days depending on the location.
FAQ:
Q1: What is the brand name of the electric vehicle fuse?
A1: The brand name of the electric vehicle fuse is ASTM FUSE.
Q2: What is the model number of the electric vehicle fuse?
A2: The model number of the electric vehicle fuse is EV105C DC fuses for pure electric vehicles, hybrid vehicles battery energy storage systems.
Q3: Where is the electric vehicle fuse manufactured?
A3: The electric vehicle fuse is manufactured in China.
Q4: What certifications does the electric vehicle fuse have?
A4: The electric vehicle fuse is certified by CE, UL, and CCC.
Q5: What is the minimum order quantity and price of the electric vehicle fuse?
A5: The minimum order quantity of the electric vehicle fuse is 100, and the price ranges from 1.5 to 2.8 USD per piece. The packaging details include a carton, and the delivery time is 1-2 weeks. Payment terms are T-T, and the supply ability is 1000K/PCS.
