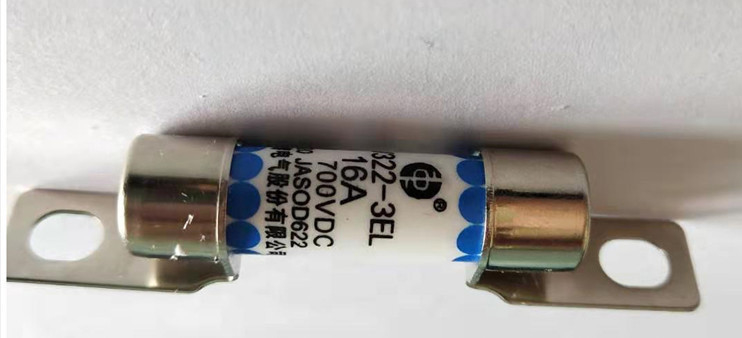

Bolted Type Round Tube Electric Vehicle Fuse For Road Vehicle EV322 3EL 16A 700VDC
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | ROHS , JASO D622 ISO08820, GB/T31465 |
| Model Number: | EV322-3EL 16A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 3~4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 700VDC | Rated Current: | 16A , 20A , 25A , 30A , 32A , |
|---|---|---|---|
| Use Category: | EVRoad Vehicle Round Tube Bolt Connectors Ceramic Automotive Fuses | Be Applicable To: | Road Vehicles Electric Vehicles |
| Installation Mode: | EV Bolted Type Round Tub | Body Type: | Round Tub |
| Characteristic: | Small Size, Strong Breaking Ability | Environmental Requirements: | IS08820 、JASO D622、 GB/T31465 |
| Purpose 1: | Electric Cars Drive The Electric System | Purpose 2: | Power Conversion System |
| Purpose 3: | Energy Storage And Power Batteries | Purpose 4: | Energy Storage Capacitor, Frequency Conversion Controller, Charger |
| Purpose 5: | Short Circuit And Overload Of Conductors And Other Vehicle Components And Equipment | Material: | Ceramic, Silver, Copper, Quartz Sand |
| Highlight: | ROHS Electric Vehicle Fuse,16A Electric Vehicle Fuse,Bolted Type Fuse 700VDC |
||
Product Description
Ceramic Automotive Fuse EV Bolted Type Round Tube Fuses For Vehic Road Vehicle Electric Vehicle Fuse EV322 3EL10A 16A 20A 25A 32A 700VDC
Basic product information
●Bolted fuse for road vehicles, performance reference JASO D622, environmental reliability in line with IS08820, JASO D622,GB/T31465
●Rated voltage: DC700V,DC750V@EV322-5FL
● Rated current: 16A ~ 400A"
● Breaking capacity: 50KA@EV322-3E*/3FM/4GL,L/R=2±0.5m,20 ka @ EV322-5 fl / 5 nm, L/R = 2 + / - 0.5 m
● The character matches the RoHS
This series of products are bolt type fuses for road vehicles, with small size, high breaking ability, can withstand strong temperature shock,
mechanical vibration/impact,Shock, current shock, chemical load, suitable for road vehicle industry applications, can be used as electric vehicle
drive power system, power conversion system, storage.Short circuit, overload and backup of energy and power batteries, energy storage capacitors,frequency conversion controllers, chargers, conductors and other vehicle components and equipment,Short circuit,overload and backup of energy,and power batteries, energy storage capacitors, frequency conversion controllers, chargers, conductors and other vehicle components and equipment Protect.
| NO | MODEL | SIZE | Rated current A |
I²t(A²s) | Fitted base / Mounting torque |
||||
| before arc | break | ||||||||
| 1 | EV322-3EM16A | 3EM | 16 | 23 | 113 | 2.9 |  Bolted constructionMounting bolt M5 Recommended torque (4.0±0.8)N.m |
||
| 2 | EV322-3EM2OA | 20 | 47 | 230 | 3.2 | ||||
| 3 | EV322-3EM25A | 25 | 93 | 450 | 3.6 | ||||
| 4 | EV322-3EM30A | 30 | 138 | 760 | 4.8 | ||||
| 5 | EV322-3EM32A | 32 | 180 | 865 | 5.1 | ||||
| 6 | EV322-3EL16A | 3EL | 16 | 23 | 113 | 2.9 | Bolted construction Mounting bolt M5 Recommended torque (4.0±0.8)N.m |
||
| 7 | EV322-3EL2OA | 20 | 47 | 230 | 3.2 | ||||
| 8 | EV322-3EL25A | 25 | 93 | 450 | 3.6 | ||||
| 9 | EV322-3EL30A | 30 | 138 | 760 | 4.8 | ||||
| 10 | EV322-3EL32A | 32 | 180 | 865 | 5.1 | ||||
| 11 | EV322-3EC16A | 3EC | 16 | 23 | 113 | 2.9 | Bolted construction Mounting bolt M5 Recommended torque (4.0±0.8)N.m |
||
| 12 | EV322-3EC20A | 20 | 47 | 230 | 3.2 | ||||
| 13 | EV322-3EC25A | 25 | 93 | 450 | 3.6 | ||||
| 14 | EV322-3EC30A | 30 | 138 | 760 | 4.8 | ||||
| 15 | EV322-3EC32A | 32 | 180 | 865 | 5.1 | ||||
| 16 | EV322-3FM16A | 3FM | 16 | 35 | 142 | 2.2 | Mounting bolt M5 Recommended torque (4.0±0.8)N.m |
||
| 17 | EV322-3FM2OA | 20 | 63 | 253 | 2.7 | ||||
| 18 | FV322-3FM25A | 25 | 120 | 478 | 3.3 | ||||
| 19 | EV322-3FM32A | 32 | 223 | 890 | 4 | ||||
| 20 | EV322-3FM40A | 40 | 397 | 1852 | 4.9 | ||||
| 21 | EV322-3FM50A | 50 | 780 | 3100 | 6.4 | ||||
| 22 | EV322-5FL16A | 5FL | 16 | 79 | 290 | 2.7 | Mounting bolt M5 Recommended torque (4.0±0.8)N.m |
||
| 23 | EV322-5FL2OA | 20 | 131 | 479 | 3.4 | ||||
| 24 | EV322-5FL25A | 25 | 232 | 852 | 4.3 | ||||
| 25 | EV322-5FL32A | 32 | 413 | 1515 | 5.1 | ||||
| 26 | FV322-5FL40A | 40 | 645 | 2367 | 6.4 | ||||
| 27 | EV322-5FL50A | 50 | 1090 | 4000 | 8 | ||||
| 28 | EV322-4GL16A | 4GL | 16 | 26 | 155 | 3.2 | |||
| 29 | EV322-4GL2OA | 20 | 45 | 266 | 3.8 | ||||
| NO | MODEL | SIZE | Rated current A |
I²t(A²s) | Fitted base / Mounting torque |
||||
| before arc | break | ||||||||
| 30 | EV322-4GL25A | 4GL | 25 | 75 | 441 | 4.6 | Lower the bolt connection Mounting bolt M6 Recommended torque 5.5N-m |
||
| 31 | EV322-4GL32A | 32 | 127 | 740 | 5.8 | ||||
| 32 | EV322-4GL40A | 40 | 210 | 1224 | 7.1 | ||||
| 33 | EV322-4GL50A | 50 | 373 | 2175 | 8.3 | ||||
| 34 | EV322-4GL63A | 63 | 63 | 3637 | 10.5 | ||||
| 35 | EV322-4GL8OA | 80 | 1122 | 6536 | 13 | ||||
| 36 | EV322-4GL100A | 100 | 1700 | 9900 | 16.5 | ||||
| 37 | EV322-5NM200A | 5NM | 200 | 2493 | 55212 | 34 | Center bolt connection knot Install bolt M10 Recommended torque 21N.m" |
||
| 38 | EV322-5NM250A | 250 | 4333 | 95937 | 43 | ||||
| 39 | EV322-5NM300A | 300 | 6476 | 143396 | 51 | ||||
| 40 | EV322-5NM350A | 350 | 9206 | 203851 | 60 | ||||
| 41 | EV322-5NM400A | 400 | 12600 | 279000 | 68 | ||||
Product Presentation
EV Bolted Type Round Tube Fuses For Vehic Road Vehicle Electric Vehicle Fuse
| Suitable for: new energy vehicles, the use of unconventional vehicle fuel as a power source (or the use of conventional vehicle fuel, the use of new on-board power plant), integrated vehicle power control and drive advanced technology, the formation of advanced technology principle, with new technology, new structure of the car. |
| New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc. |
Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
