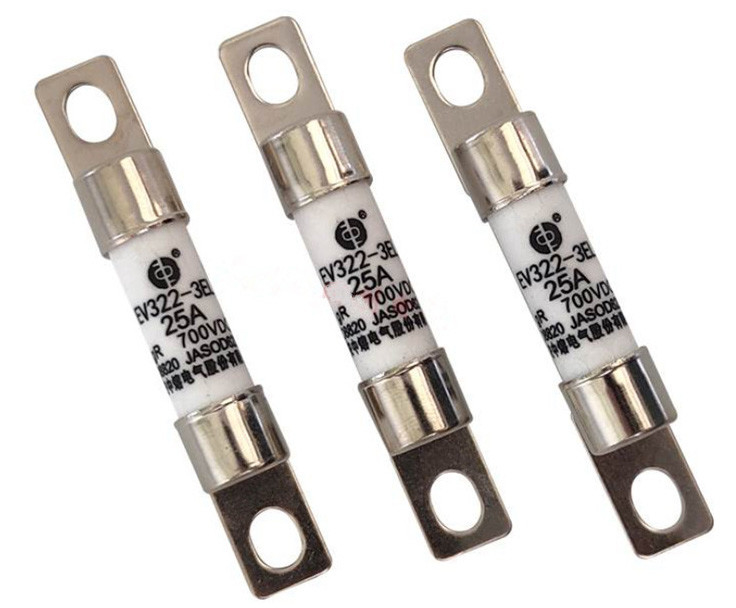

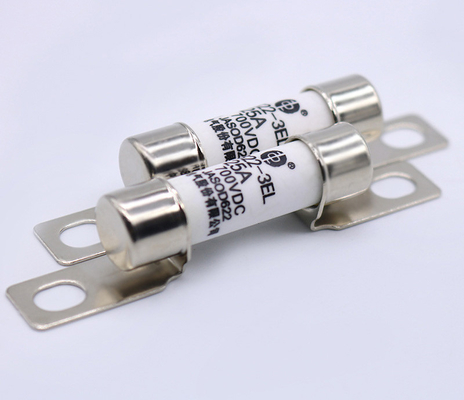

Ceramic EV Bolted Type Round Tube Electric Vehicle Fuse EV322 3EL 25A 700VDC

Product Description

EV Bolted Type Round Tube Fuses For Vehic Road Vehicle Electric Vehicle Fuse EV322 3EL10A 16A 20A 25A 32A 700VDC Round Tub Ceramic Automotive Fuse

Basic product information

●Bolted fuse for road vehicles, performance reference JASO D622, environmental reliability in line with IS08820, JASO D622,GB/T31465

●Rated voltage: DC700V,DC750V@EV322-5FL

● Rated current: 16A ~ 400A"

● Breaking capacity: 50KA@EV322-3E*/3FM/4GL,L/R=2±0.5m,20 ka @ EV322-5 fl / 5 nm, L/R = 2 + / - 0.5 m

● The character matches the RoHS

This series of products are bolt type fuses for road vehicles, with small size, high breaking ability, can withstand strong temperature shock,

mechanical vibration/impact,Shock, current shock, chemical load, suitable for road vehicle industry applications, can be used as electric vehicle

drive power system, power conversion system, storage.Short circuit, overload and backup of energy and power batteries, energy storage capacitors,frequency conversion controllers, chargers, conductors and other vehicle components and equipment,Short circuit,overload and backup of energy,and power batteries, energy storage capacitors, frequency conversion controllers, chargers, conductors and other vehicle components and equipment Protect.

NO	MODEL		SIZE	Rated current A		I²t(A²s)			Fitted base / Mounting torque
						before arc	break
1	EV322-3EM16A		3EM	16		23	113	2.9	Bolted construction Mounting bolt M5 Recommended torque (4.0±0.8)N.m
2	EV322-3EM2OA			20		47	230	3.2
3	EV322-3EM25A			25		93	450	3.6
4	EV322-3EM30A			30		138	760	4.8
5	EV322-3EM32A			32		180	865	5.1
6	EV322-3EL16A		3EL	16		23	113	2.9	Bolted construction Mounting bolt M5 Recommended torque (4.0±0.8)N.m
7	EV322-3EL2OA			20		47	230	3.2
8	EV322-3EL25A			25		93	450	3.6
9	EV322-3EL30A			30		138	760	4.8
10	EV322-3EL32A			32		180	865	5.1
11	EV322-3EC16A		3EC	16		23	113	2.9	Bolted construction Mounting bolt M5 Recommended torque (4.0±0.8)N.m
12	EV322-3EC20A			20		47	230	3.2
13	EV322-3EC25A			25		93	450	3.6
14	EV322-3EC30A			30		138	760	4.8
15	EV322-3EC32A			32		180	865	5.1
16	EV322-3FM16A		3FM	16		35	142	2.2	Mounting bolt M5 Recommended torque (4.0±0.8)N.m
17	EV322-3FM2OA			20		63	253	2.7
18	FV322-3FM25A			25		120	478	3.3
19	EV322-3FM32A			32		223	890	4
20	EV322-3FM40A			40		397	1852	4.9
21	EV322-3FM50A			50		780	3100	6.4
22	EV322-5FL16A		5FL	16		79	290	2.7	Mounting bolt M5 Recommended torque (4.0±0.8)N.m
23	EV322-5FL2OA			20		131	479	3.4
24	EV322-5FL25A			25		232	852	4.3
25	EV322-5FL32A			32		413	1515	5.1
26	FV322-5FL40A			40		645	2367	6.4
27	EV322-5FL50A			50		1090	4000	8
28	EV322-4GL16A		4GL	16		26	155	3.2
29	EV322-4GL2OA			20		45	266	3.8
NO	MODEL		SIZE	Rated current A		I²t(A²s)			Fitted base / Mounting torque
						before arc	break
30	EV322-4GL25A		4GL	25		75	441	4.6	Lower the bolt connection Mounting bolt M6 Recommended torque 5.5N-m
31	EV322-4GL32A			32		127	740	5.8
32	EV322-4GL40A			40		210	1224	7.1
33	EV322-4GL50A			50		373	2175	8.3
34	EV322-4GL63A			63		63	3637	10.5
35	EV322-4GL8OA			80		1122	6536	13
36	EV322-4GL100A			100		1700	9900	16.5
37	EV322-5NM200A		5NM	200		2493	55212	34	Center bolt connection knot Install bolt M10 Recommended torque 21N.m"
38	EV322-5NM250A			250		4333	95937	43
39	EV322-5NM300A			300		6476	143396	51
40	EV322-5NM350A			350		9206	203851	60
41	EV322-5NM400A			400		12600	279000	68
