EV-315M-4Q 60A 80A 100A 500VDC Electric Vehicle Fuse Round Tube For Road EVS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JULUN |
| Certification: | ROHS |
| Model Number: | EV-315M-4Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Rated Voltage: | 500VDC | Rated Current: | EV-315M-4Q 60,80,100A 500VDC |
|---|---|---|---|
| Use Category: | EVRoad Vehicle Round Tube Bolt Connectors Ceramic Automotive Fuses | Be Applicable To: | Electric Vehicle Fuse |
| Style: | Tubular With Mounting Hole | Model: | EV315-H 3EB |
| Highlight: | Road EVS Ceramic Automotive Fuses,Electric Vehicle Fuse 500VDC,60A Electric Vehicle Fuse |
||
Product Description
Electric Vehicle Fuse Road Vehicle Round Tube Bolt ConnectorsEV-315M-4Q 60,80,100A 500VDC
| NO | MODEl | rated curren | 2t(42s) | power(w) | colour | wheigt(g) | Minimum packing(pcs) | Maximum packing(pcs) | remark | ||
| in front of arc | break | ||||||||||
| 1 | EV315-L-B10A | L-3EB | 10 | 19 | 64 | 2 | red | 12±1 | 36 | 576 | Pull out the structure M5 bolts 4.5±1N ·m |
| 2 | EV315-L-B15A | 15 | 47 | 144 | 3 | blue | |||||
| 3 | EV315-L-B20A | 20 | 83 | 256 | 4 | yellow | |||||
| 4 | EV315-L-B30A | 30 | 333 | 1025 | 6 | green | |||||
| 5 | EV315-L-B40A | 40 | 748 | 2306 | 8 | orange | |||||
| 6 | EV315-L-B50A | 50 | 1330 | 4100 | 10 | white | |||||
| 7 | EV315-L-10A | L-3E | 10 | 19 | 64 | 2 | red | 12±1 | 36 | 576 | Pull out the structure M5 bolts 4.5±1N ·m |
| 8 | EV315-L-15A | 15 | 47 | 144 | 3 | blue | |||||
| 9 | EV315-L-20A | 20 | 83 | 256 | 4 | yellow | |||||
| 10 | EV315-L-E30A | 30 | 333 | 1025 | 6 | green | |||||
| 11 | EV315-L-E40A | 40 | 748 | 2306 | 8 | orange | |||||
| 12 | EV315-L-E50A | 50 | 1330 | 4100 | 10 | white | |||||
| 13 | EV315-M-10A | M-3E | 10 | 19 | 64 | 2 | red | 14±1 | 40 | 1200 | M5 bolts for middle out structure 4.5±1N ·m |
| 14 | EV315-M-15A | 15 | 47 | 144 | 3 | blue | |||||
| 15 | EV315-M-20A | 20 | 83 | 256 | 4 | yellow | |||||
| 16 | EV315-M-30A | 30 | 333 | 1025 | 6 | green | |||||
| 17 | EV315-M-40A | 40 | 748 | 2306 | 8 | orange | |||||
| 18 | EV315-M-50A | 50 | 1330 | 4100 | 10 | white | |||||
| 19 | EV315-C-10A | C-3E | 10 | 19 | 64 | 2 | red | 9.5±1 | 48 | 1728 | Cylinder cap construction |
| 20 | EV315-C-15A | 15 | 47 | 144 | 3 | blue | |||||
| 21 | EV315-C-2OA | 20 | 83 | 256 | 4 | yellow | |||||
| 22 | EV315-C-30A | 30 | 333 | 1025 | 6 | green | |||||
| 23 | EV315-C-40A | 40 | 748 | 2306 | 8 | orange | |||||
| 24 | EV315-C-50A | 50 | 1330 | 4100 | 10 | white | |||||
| 25 | EV315-L-D10A | L-3ED | 10 | 19 | 64 | 2 | red | 12±1 | 36 | 576 | Bottom out structure M5 bolt 4.5±1N ·m |
| 26 | EV315-L-D15A | 15 | 47 | 144 | 3 | blue | |||||
| 27 | EV315-L-D20A | 20 | 83 | 256 | 4 | yellow | |||||
| 28 | EV315-L-D30A | 30 | 333 | 1025 | 6 | green | |||||
| 29 | EV315-L-D40A | 40 | 748 | 2306 | 8 | orange | |||||
| 30 | EV315-L-D50A | 50 | 1330 | 4100 | 10 | white | |||||
Product Presentation

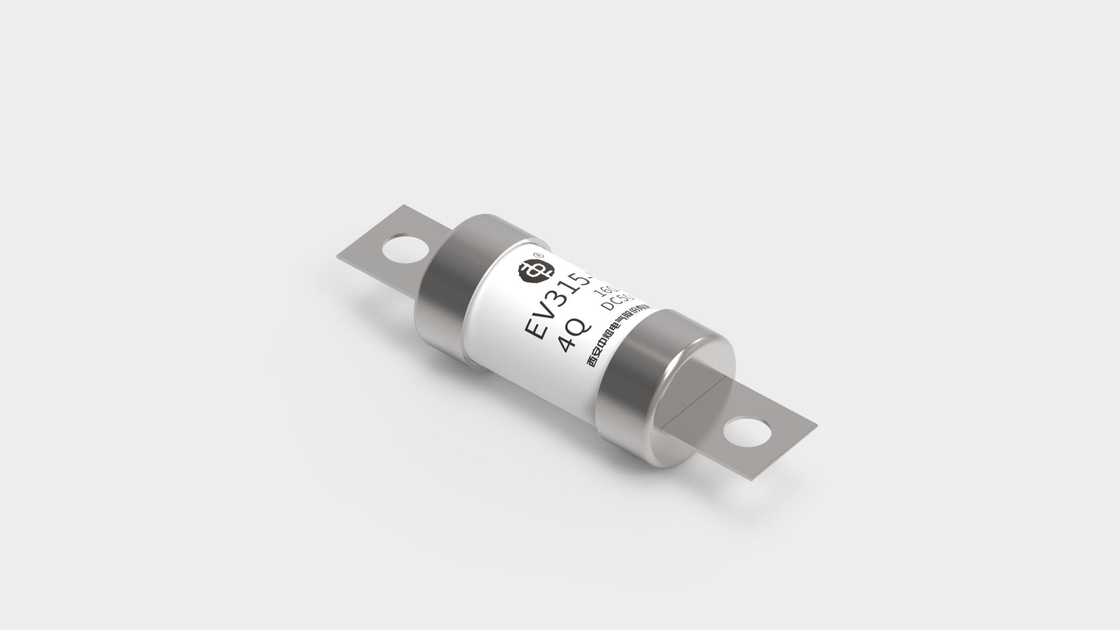

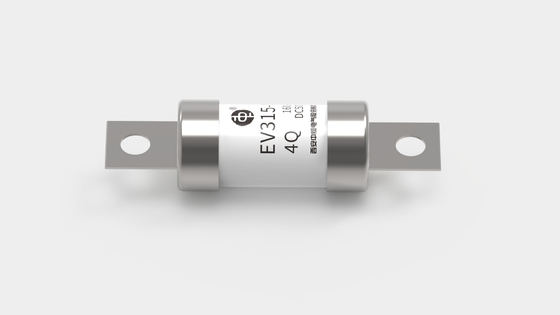

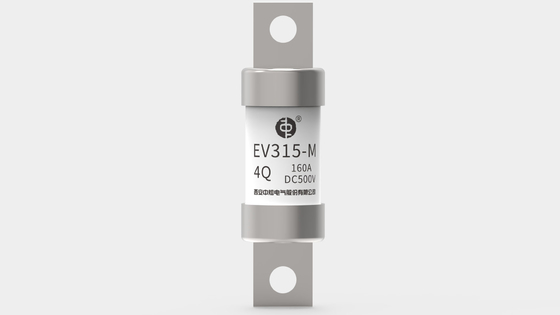

Electric Vehicle Fuse EV-315M-4Q 60,80,100A 500VDC
Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
New energy vehicles refer to the vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate the advanced technology of vehicle power control and drive, and form the vehicles with advanced technical principles, new technology and new structure.
New energy vehicles include four types: hybrid electric vehicles (HEV), pure electric vehicles (BEVs, including solar vehicles), fuel cell electric vehicles (FCEVs), and other new energy vehicles (such as supercapacitors, flywheels and other efficient energy storage devices). Unconventional vehicle fuels refer to fuels other than gasoline and diesel.
