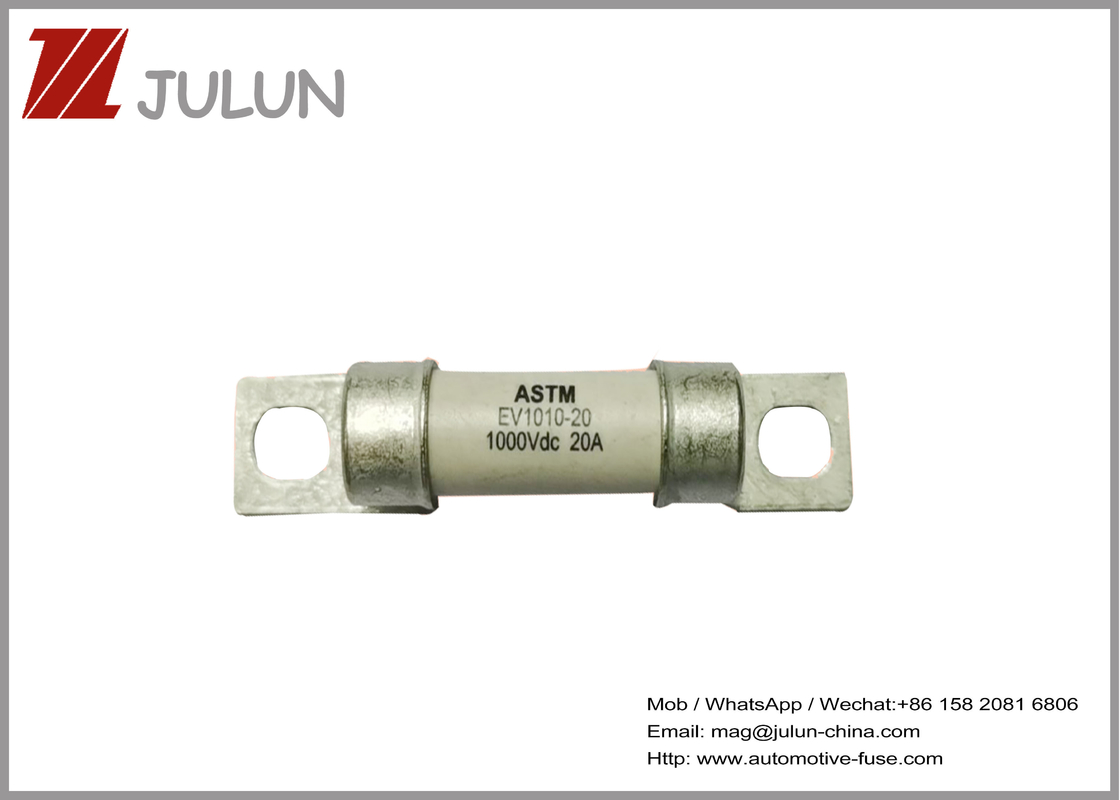

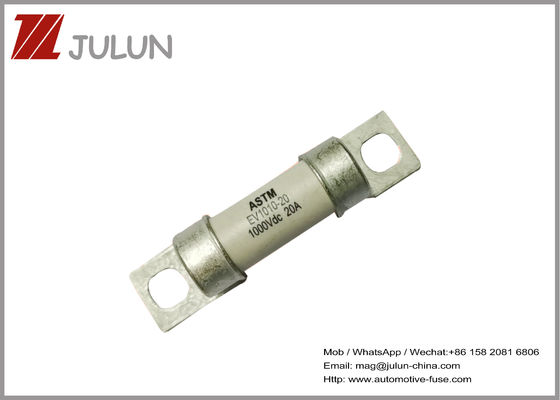

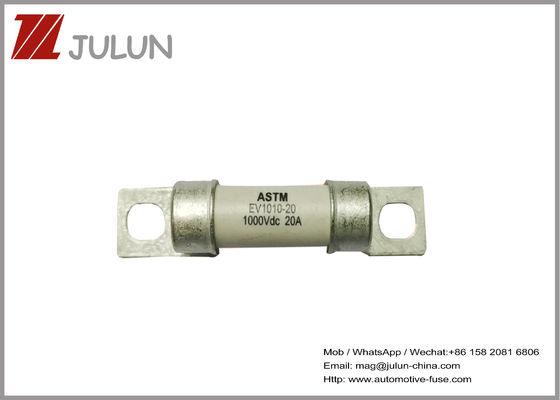

HEV Ceramic Automotive Fuses , Bolt Down 1000V Fast Acting Fuse
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Julun |
| Certification: | UL VDE CCC IEC |
| Model Number: | 1000VDC, Fast Acting Fuse for DC Application A381001 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100 |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 PCS |
|
Detail Information |
|||
| Material: | Ceramic Fuse | Rated Voltage: | 1000Vdc |
|---|---|---|---|
| Interrupting Rating: | 50000A | Application Scenarios: | General Purpose Fuse For EV/HEV |
| Installation Type: | Compact Bolts And Welding Terminals | Rated Current (A): | 10A 15A 20A 25A 30A |
| Highlight: | Bolt Down 1000V Fast Acting Fuse,Bolt Down Ceramic Automotive Fuses,HEV Ceramic Automotive Fuses |
||
Product Description
AUTOMOTIVE FUSE 1000Vdc For EV Or HEV Application Compact Bolt Down And Thru-Hole Terminals
1.Description
Ø General purpose fuse for EV/HEV
Ø Compact bolt down and thru-hole terminals
Ø 1000Vdc ideal for EV or HEV application
Ø Excellent DC performance
Ø Design refer to JASO D622:2006
| Electrical Characteristics | ||
| % of Ampere Rating (A) | Operating Time (Unit: s) | |
| Min | Max | |
| 200% | 1 | 300 |
| 300% | 0.2 | 30 |
| 500% | 0.1 |
10
|
1.Specifications :(‘YY’ means Assembly code )
|
Ordering P/N 订购料号 |
Rated Current (A) 额定电流 |
Rated Voltage/ Interrupting rating 额定电压/分断能力 |
Typical cold resistance 冷电阻典型值 (mOhms) |
Typical voltage drop 压降典型值 (mV) |
Typical pre- arcing I2t 弧前 I2t 典型值 (A2sec) |
|
| At 0.5In | At 1.0In | |||||
| EV1010-10YY | 10 |
1000Vdc/50000A |
12.5 | 60 | 130 | 120 |
| EV1010-15YY | 15 | 7.2 | 60 | 140 | 405 | |
| EV1010-20YY | 20 | 5.2 | 80 | 154 | 1450 | |
| EV1010-25YY | 25 | 4.0 | 63 | 145 | 560 | |
| EV1010-30YY | 30 | 3.1 | 56 | 150 | 650 | |
*Temperature Rise :<=50K with 70% of rated current
** Typical pre-arcing I2t measured at 10In
3.Dimension (mm)
(1) Assembly Code ‘AP’/Ordering code ”EV1010-xxAP” 螺栓安装方式’AP’/订货编码”EV1010-xxAP”
(2) Assembly Code ‘BPL’/Ordering code ”EV1010-xxBPL” 螺栓安装方式’BPL’/订货编码”EV1010-xxBPL”
(3) Assembly Code ‘EP’/Ordering code ”EV1010-xxEP” 螺栓安装方式’EP’/订货编码”EV1010-xxEP”
(4) Assembly Code ‘CP’/Ordering code ”EV1010-xxCP”; PCB 引脚通孔焊接方式‘CP’/订货编码”EV1010-xxCP”
(5) Assembly Code ‘FP’/Ordering code ”EV1010-xxFP”; PCB 引脚通孔焊接方式‘FP’/订货编码”EV1010-xxFP”
AUTOMOTIVE FUSE 1000Vdc For EV Or HEV Application Compact Bolt Down And Thru-Hole Terminals
JULUN is a professional supplier of safety and reliability solutions for electrical equipment. The innovative solutions designed by JULUN fully meet the professional needs of users in energy, transportation, electronics, chemical, pharmaceutical and processing industries to optimize their production processes.
JULUN's professional skills include:
· High performance materials and their solutions in high temperature environments
· Safety protection plan for new energy vehicles, motorcycles and solar photovoltaic
· Electrical solutions for generators and motors
· Power safety and reliability
