Automotive Electronic Circuit Board Fuses Fast - Cut Patch Ceramic Fuses
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Julun |
| Certification: | CE/UL/VDE/KC/ROHS |
| Model Number: | 440A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 / Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 7~10 Working days |
| Payment Terms: | L/C, D/P, T/T, |
| Supply Ability: | 10000/Piece/Weekly |
|
Detail Information |
|||
| Decoupling Ability: | Fast | Current Range: | 0.5A~8A |
|---|---|---|---|
| Rated Voltage: | 32V~63V | Certified: | UL / PSE |
| Highlight: | slow blow micro fuse,mini cartridge fuse |
||
Product Description

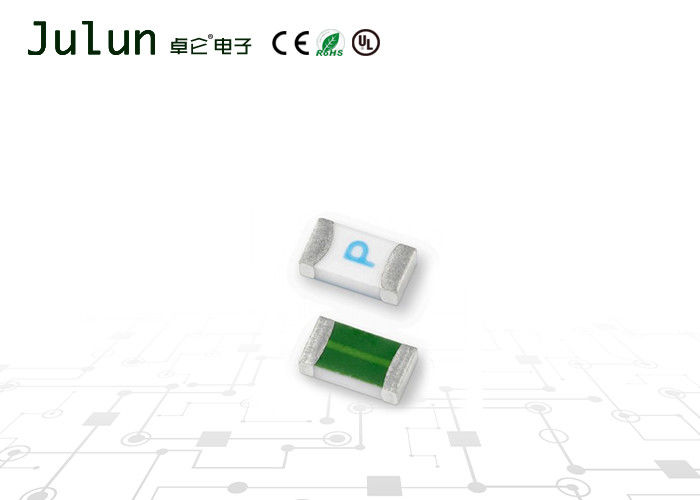

Automotive Electronic Circuit Board Fuses , Fast - Cut Patch Ceramic Fuses
Fuse_440A_Datasheet.pdf
The 440A Series AECQ-Compliant fuses are specifically tested to cater to secondary circuit protection needs of compact auto electronics applications. The general design ensures excellent temperature stability and performance reliability. This high I2t fuse series is designed to have ultra high inrush current withstand capability to avoid nuisance fuse open.
Features
• Operating Temperature from -55ºC to +150ºC
• 100% Lead-free, RoHS compliant and Halogen-free
• Meets Littelfuse’s automotive qualifications
• Ultra high I2t values
• Fast response to faulty current to ensure overcurrent protection to sensitive electronic component
Applications
Li-ion Battery • LED Lighting • Automotive Navigation System • TFT Display • Battery Management System (BMS) • Cluster
| % of Ampere Rating | Ampere Rating | Opening Time |
| 100% | 0.5A - .75A 1.75A - 8A | 4 hours, Minimum |
| 350% | 0.5A - .75A 1.75A - 8A | 5 seconds, Maximum |
| Ampere Rating | Amp Code | Max.Voltage Rating | Interrupting Rating | Nominal Resistance | Nominal Melting I2t | Nominal Voltage Drop At Rated Current | Nominal Power Dissipation At Rated Current |
| 0.5 | 0.5 | 63 | 50A @ 63VAC/DC | 0.814 | 0.02642 | 0.4831 | 0.242 |
| 0.75 | 0.75 | 63 | 50A @ 63VAC/DC | 0.4624 | 0.09312 | 0.3983 | 0.299 |
| 1.75 | 1.75 | 32 | 50A @ 32VAC/DC | 0.045 | 0.3312 | 0.0777 | 0.136 |
| 2 | 2 | 32 | 0.0385 | 0.4326 | 0.0792 | 0.158 | |
| 2.5 | 2.5 | 32 | 0.0285 | 0.8191 | 0.0747 | 0.187 | |
| 3 | 3 | 32 | 0.02252 | 1.232 | 0.0742 | 0.223 | |
| 3.5 | 3.5 | 32 | 0.01845 | 1.789 | 0.0757 | 0.265 | |
| 4 | 4 | 32 | 0.01553 | 2.601 | 0.0709 | 0.284 | |
| 5 | 5 | 32 | 0.012 | 4.761 | 0.0654 | 0.327 | |
| 7 | 7 | 32 | 0.00753 | 8.464 | 0.0696 | 0.487 | |
| 8 | 8 | 32 | 0.00634 | 12.95 | 0.0655 | 0.524 |
1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before
shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your
a/c like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the
very beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most
competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details
drawings so that we can provide us our professional & best service to you.
